Northport

Size: 8x12

8x12

10x12

Pre-cut, ready-to-build DIY shed kit

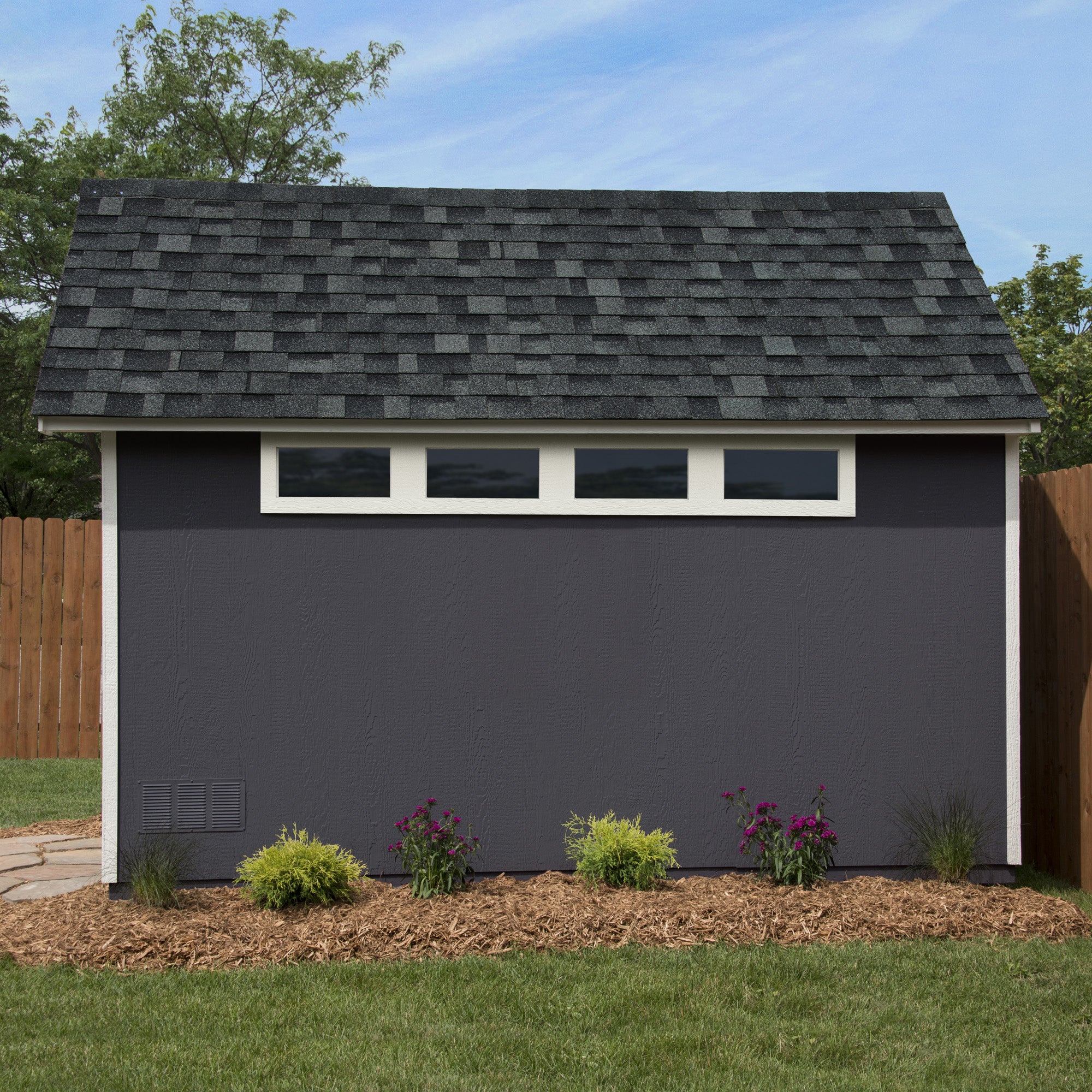

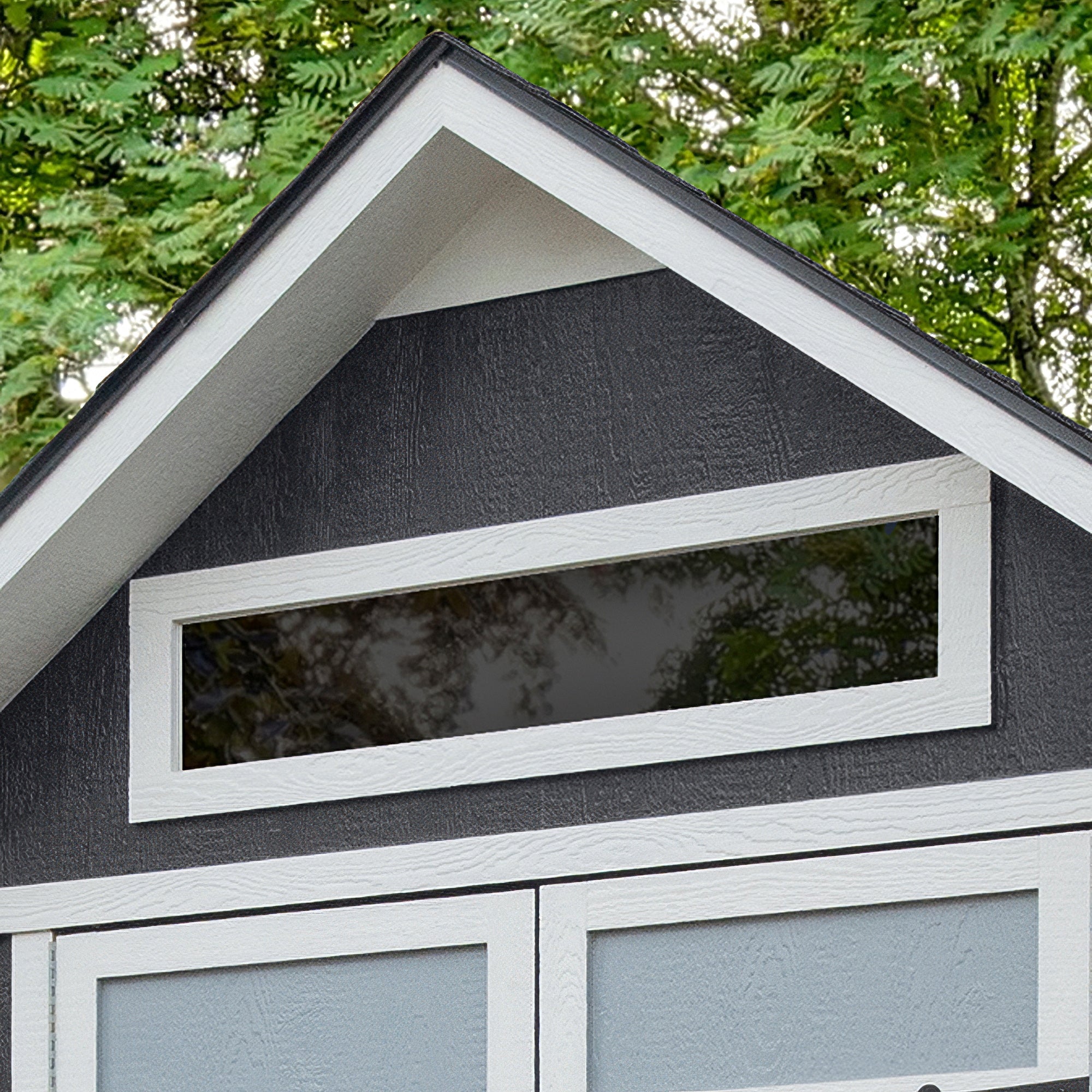

Four sidewall transom and overdoor windows provide natural light

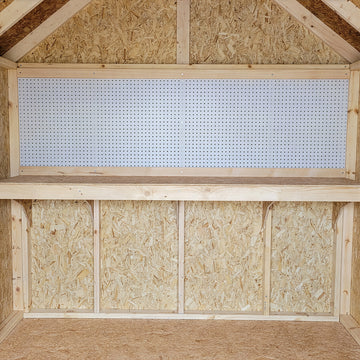

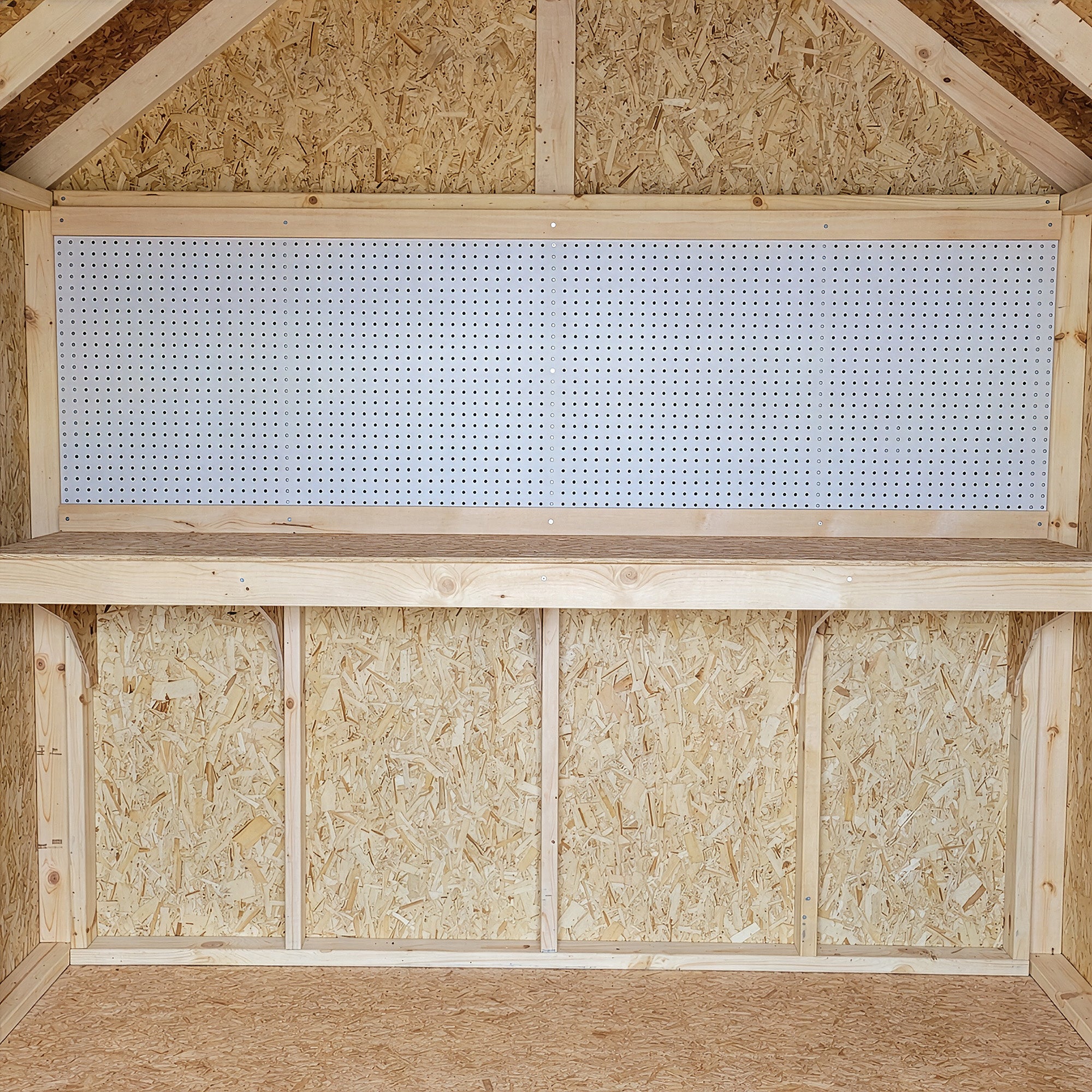

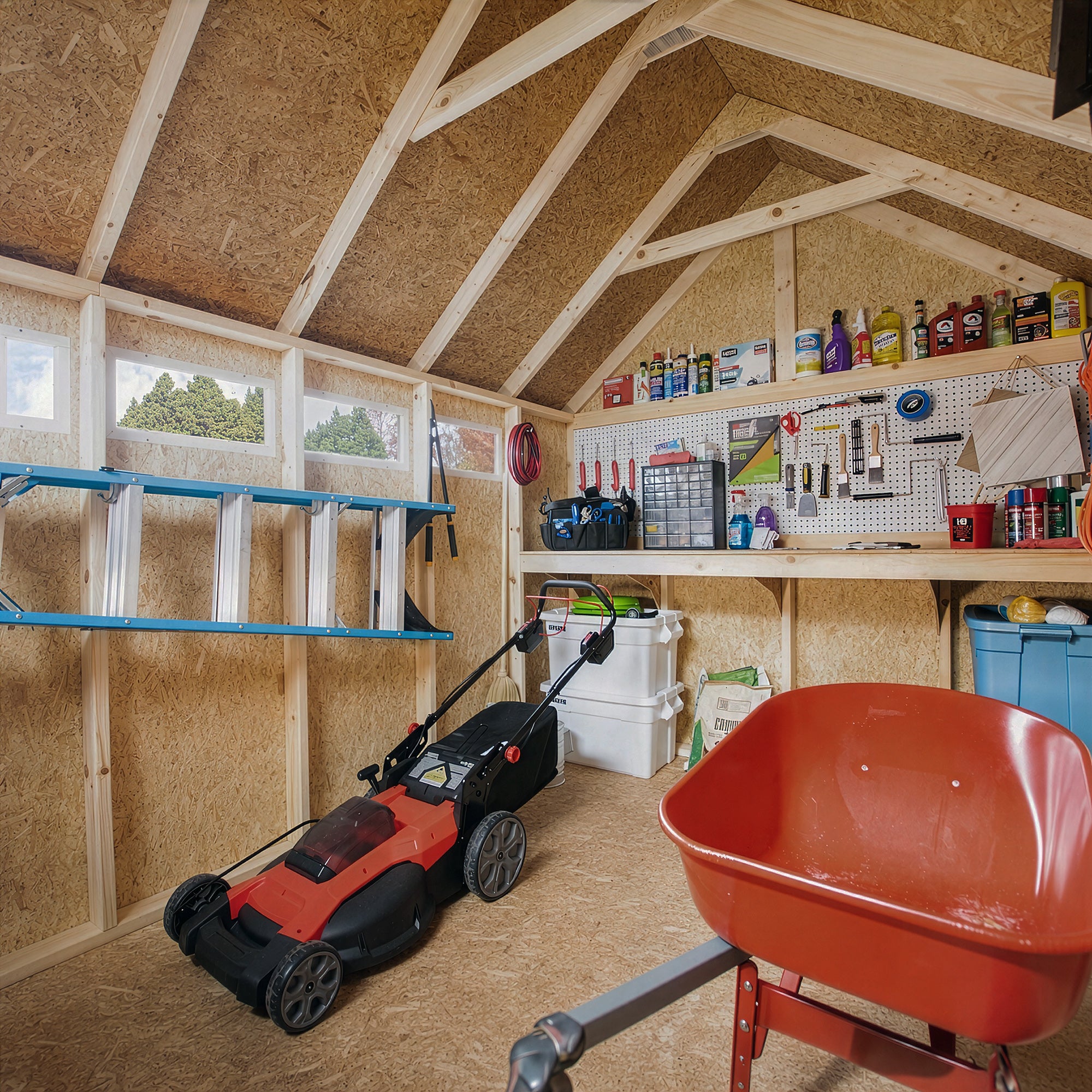

Workbench and pegboard keep items organized and off the floor
Complete floor system included
Strong 2x4 framing built for wind and snow loads
LP® treated wood siding helps resist dents, decay, and termites

Shop on Costco.com

Shopping from Canada? Shop Costco.ca

Sku:
N/A

$0.00

Northport

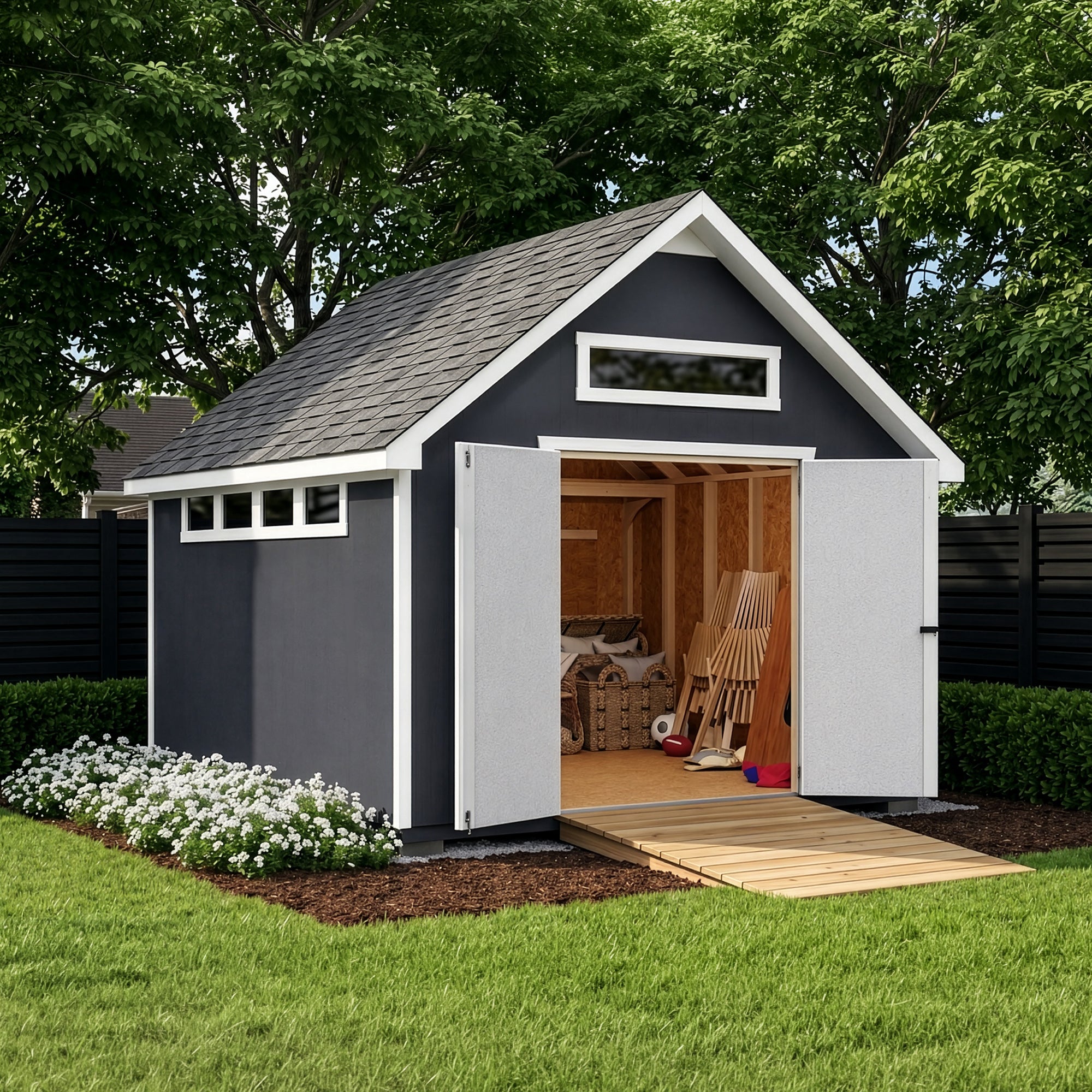

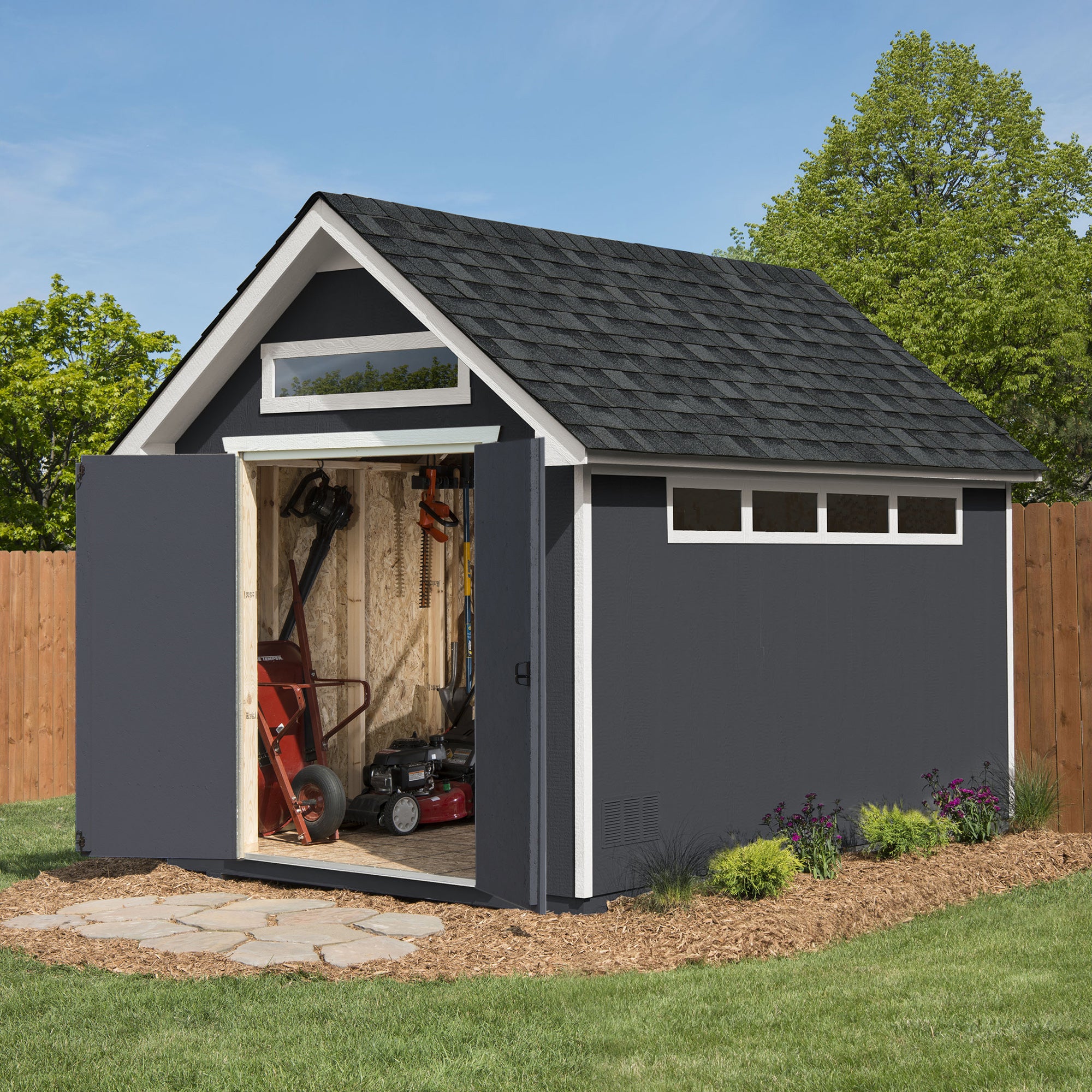

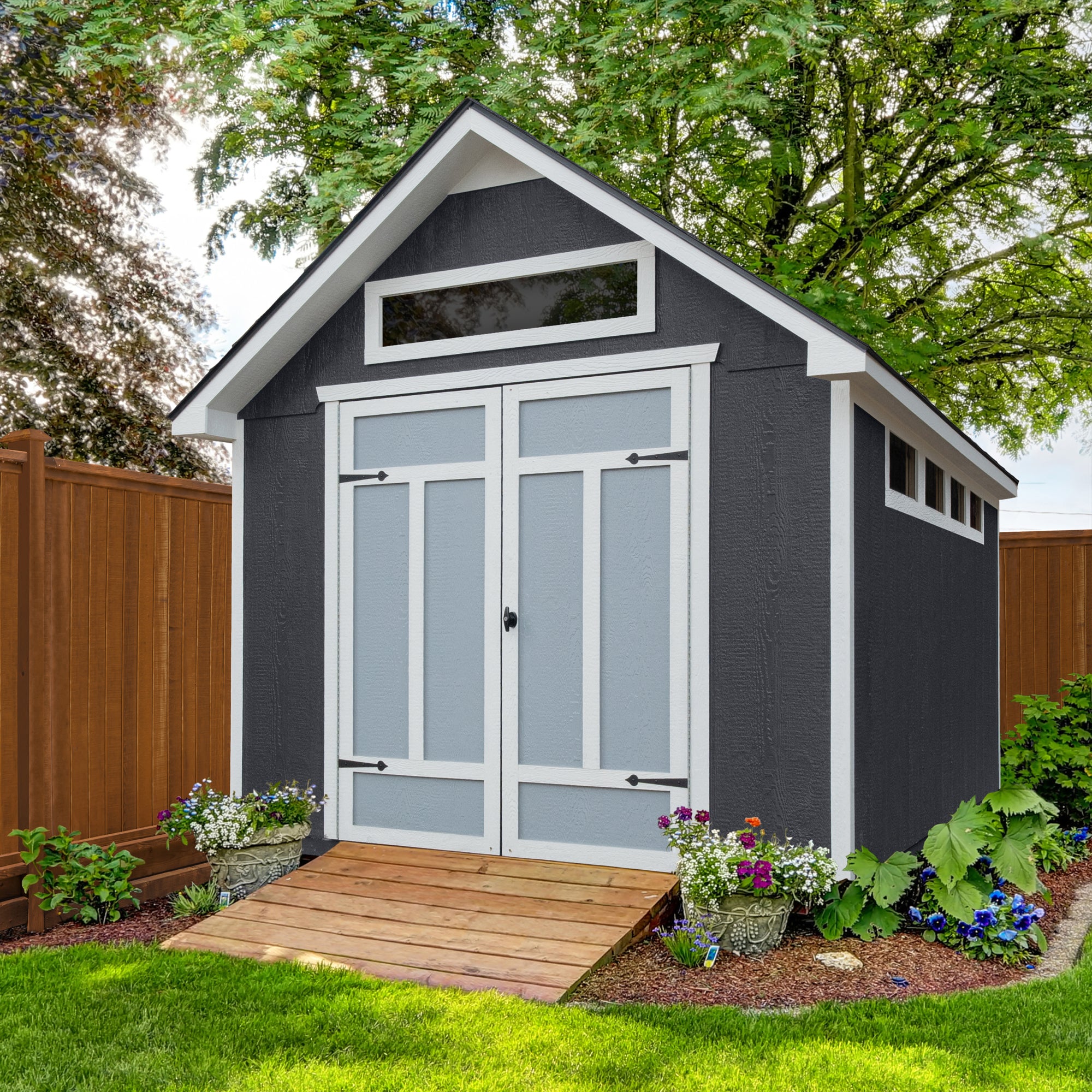

Unclutter your life with the Northport shed by Yardline, a stylish DIY wood shed kit designed for functionality and aesthetics. Featuring four transom windows and a large overdoor window, the interior is flooded with natural light, perfect for projects or hobbies. The smart design includes a workbench that converts to a loft for seasonal storage, while LP® SmartSide® siding ensures durability against the elements. Available in 8' x 12' and 10' x 12', this shed is your ideal solution for an organized outdoor space.

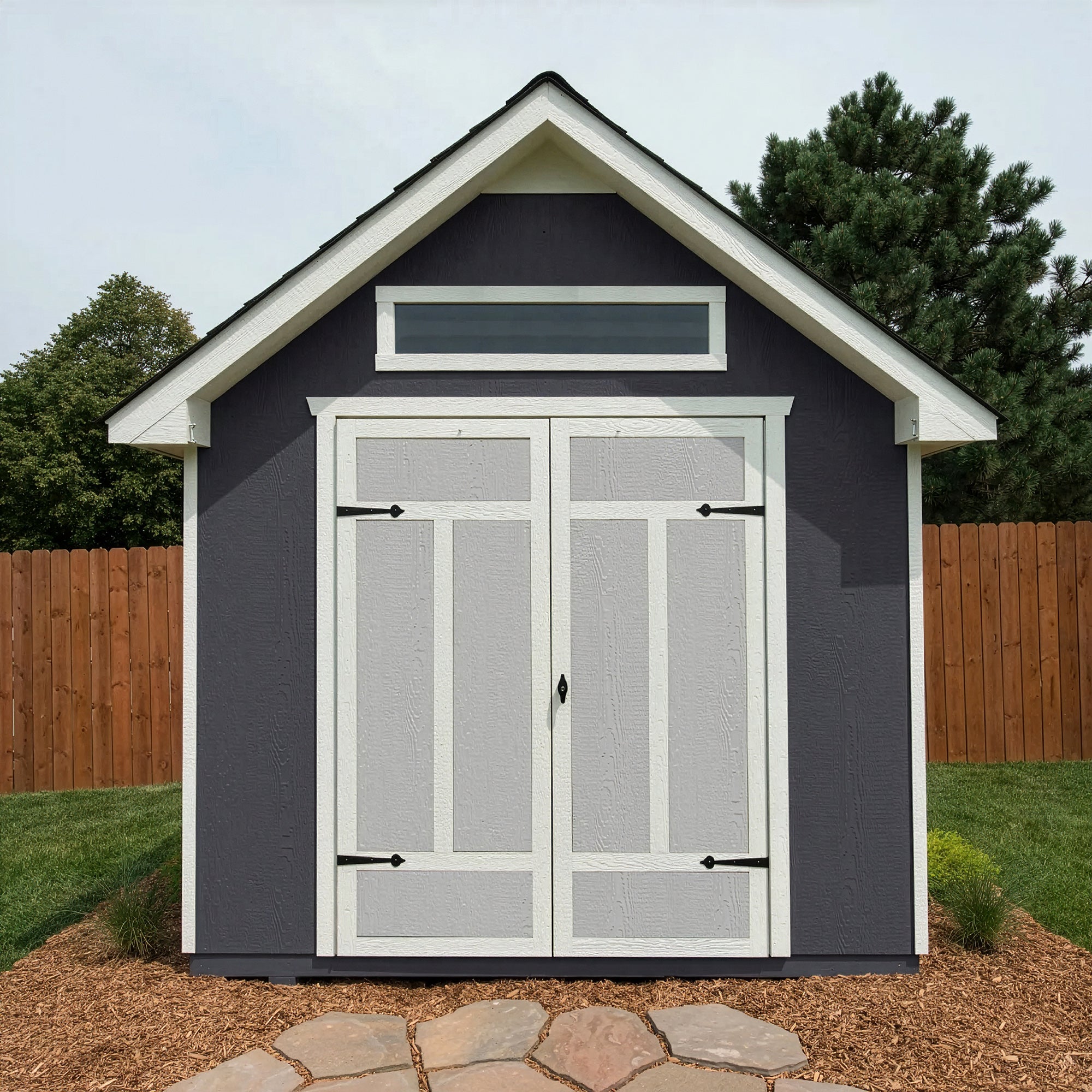

Size: 8' x 12'

Common Size (w x d x h): 8' x 12' x 10'
Cubic Feet Storage: 730
Square Footage: 96
Number of Rafters: 7 sets
Assembled Weight: 1,907 lbs.
Loft (W x D): 89” x 20”

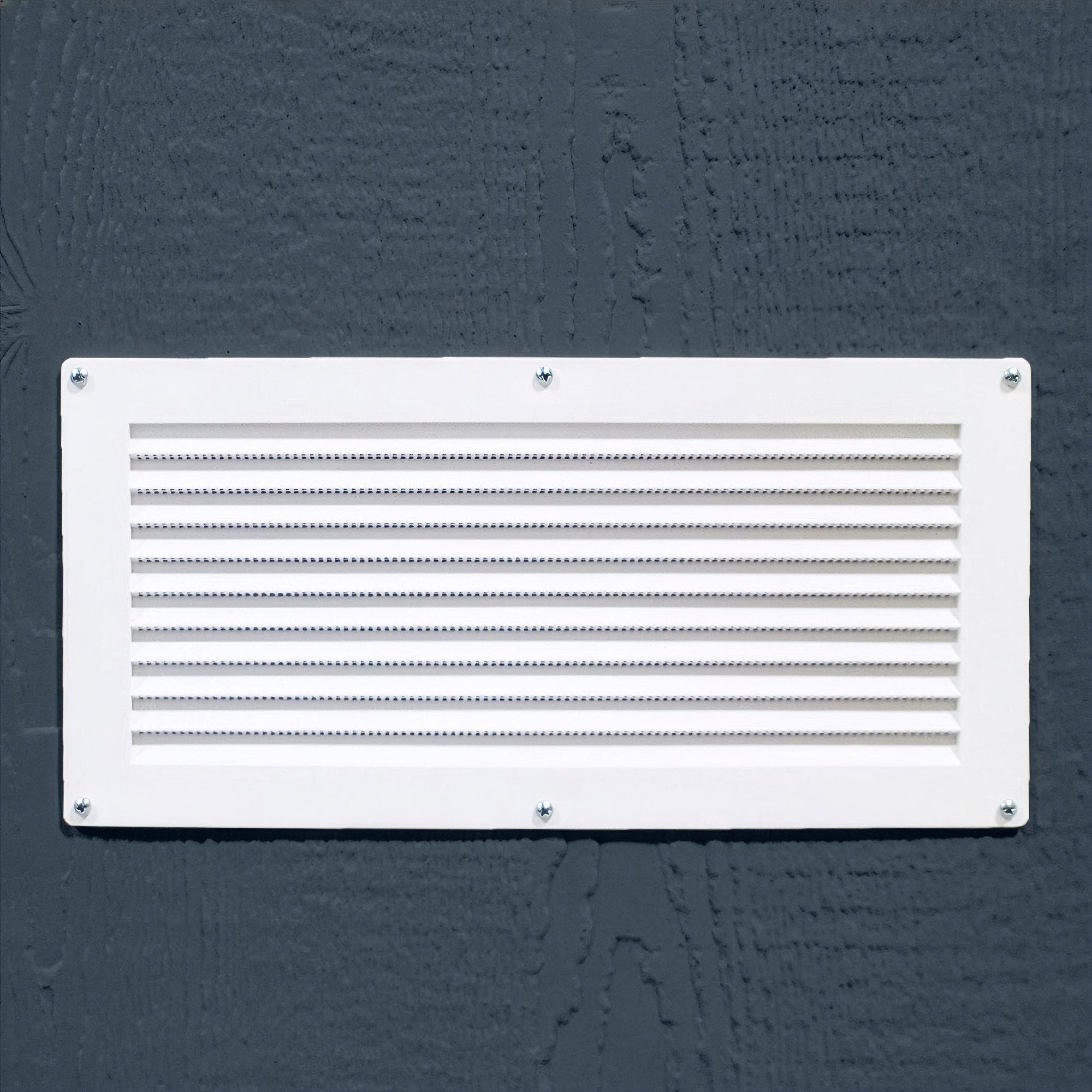

Vents: Wall Vent (2)
Double Doors: 56" (width) | 70" (height)
Wall Framing: 2” x 4”
Stud Spacing: 24" O.C
Rafter Spacing: 24” O.C
Piano Hinges: Included
Type of Handle: Locking T-Handle
Windows: Transom Windows – (4) 9” x 23”; (1) 9” x 42”
Roof Style: Gable
Roof Pitch: 9.5/12
Maximum Roof Load (lbs./ sq. ft.): 30
Maximum Wind Resistance (mph): 115
Warranty: Limited 10-year warranty

--

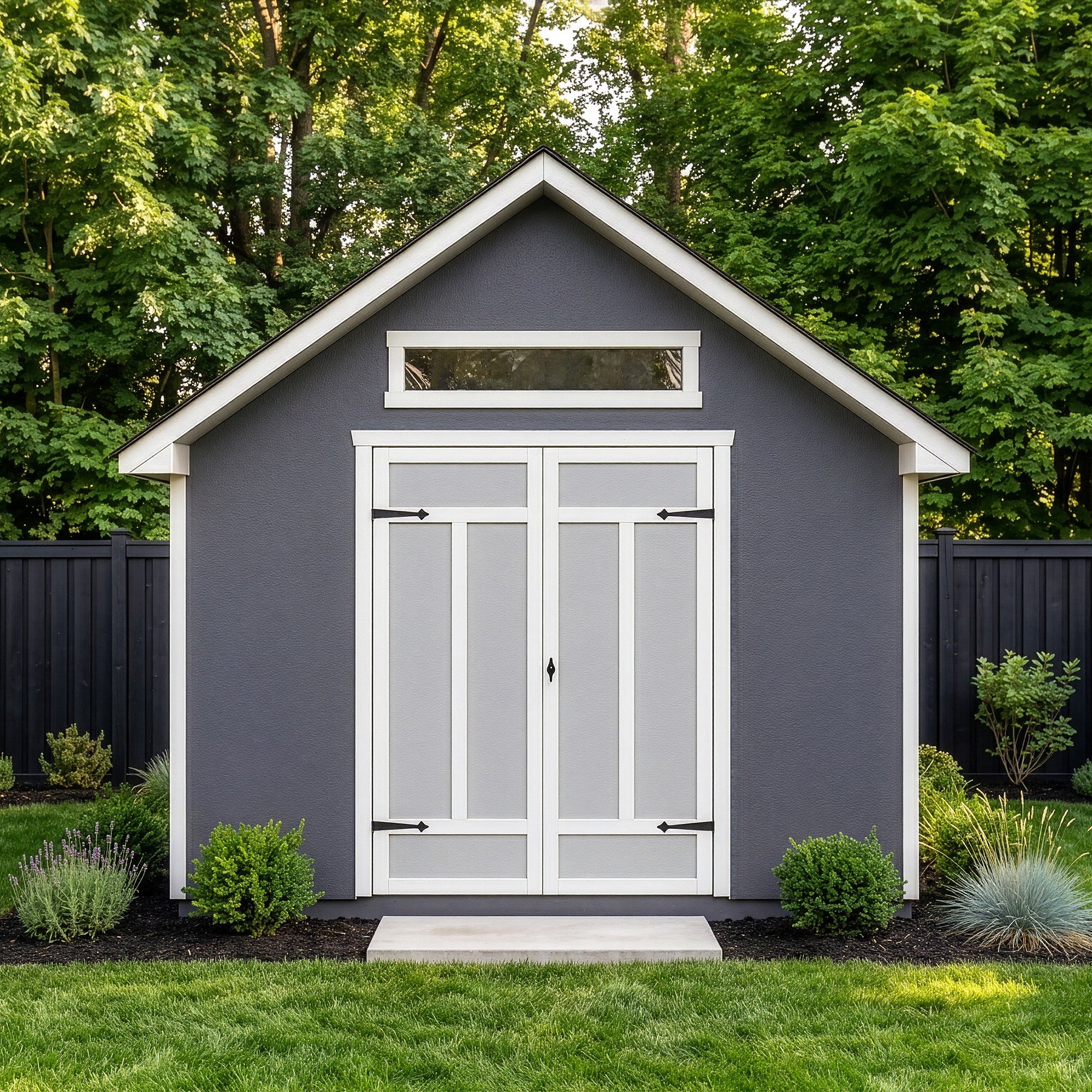

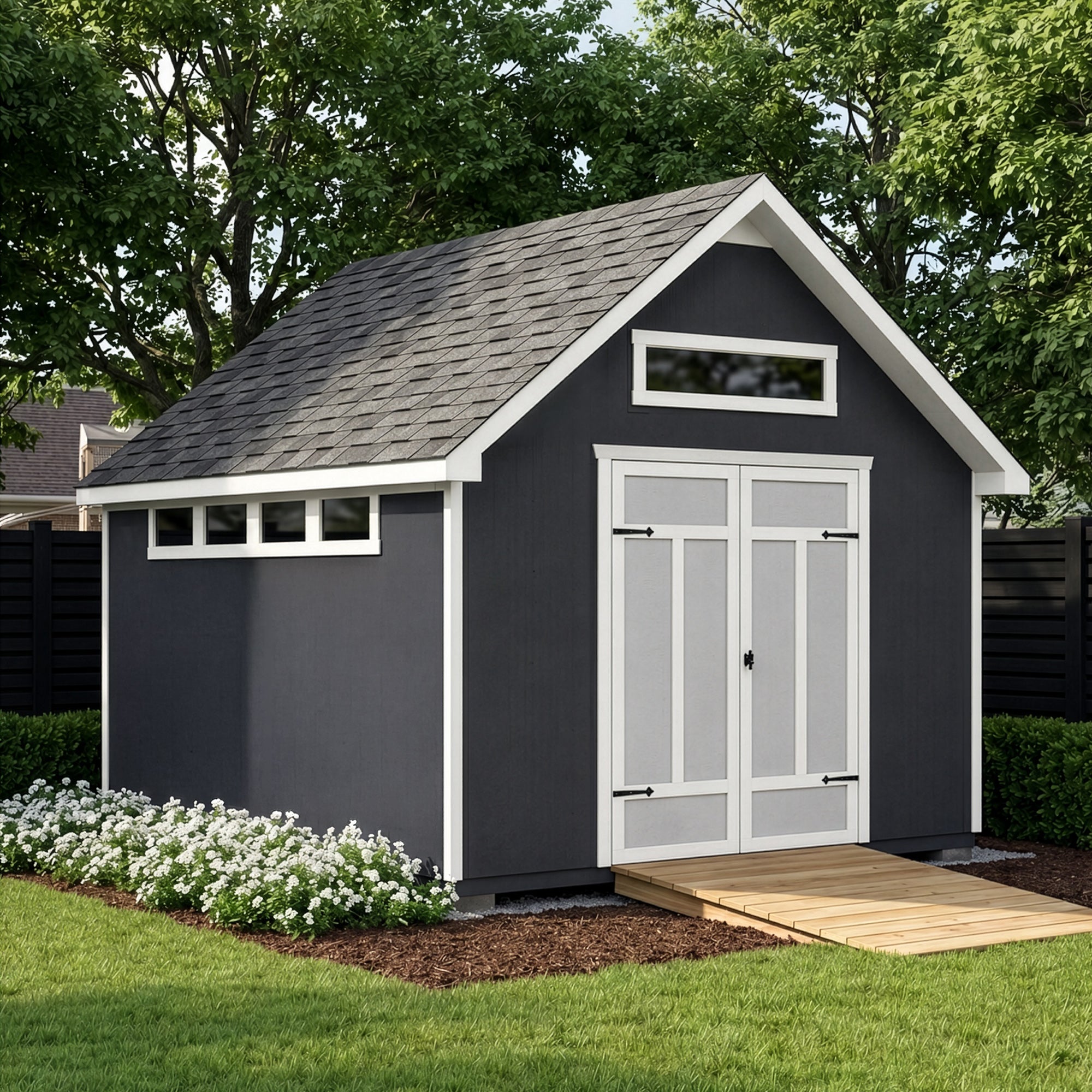

Size: 10'x12'

Common Size (w x d x h): 10' x 12' x 10'
Actual Interior Dimensions (w x d): 10' x 12'
Floor Size: 10' x 12'
Recommended Concrete Slab Size: 10' x 12'
Type of Floor Included: Treated frame with 5/8" OSB decking
Wood Floor Decking: Included
Floor Weight Capacity: 40 lbs./sq. ft. | 6,345 lbs.
Peak Height: 10' 11"
Sidewall Height: 6'
Cubic Feet Storage: 960
Square Footage: 120
Double Door Opening Width: 56"
Double Door Opening Height: 70.5"
Wall Framing: 2" x 4"
Joist Spacing: 16"
Stud Spacing: 24"
Number of Rafters: 6
Rafter Spacing: 24"
Vents: (2) 8" x 16"

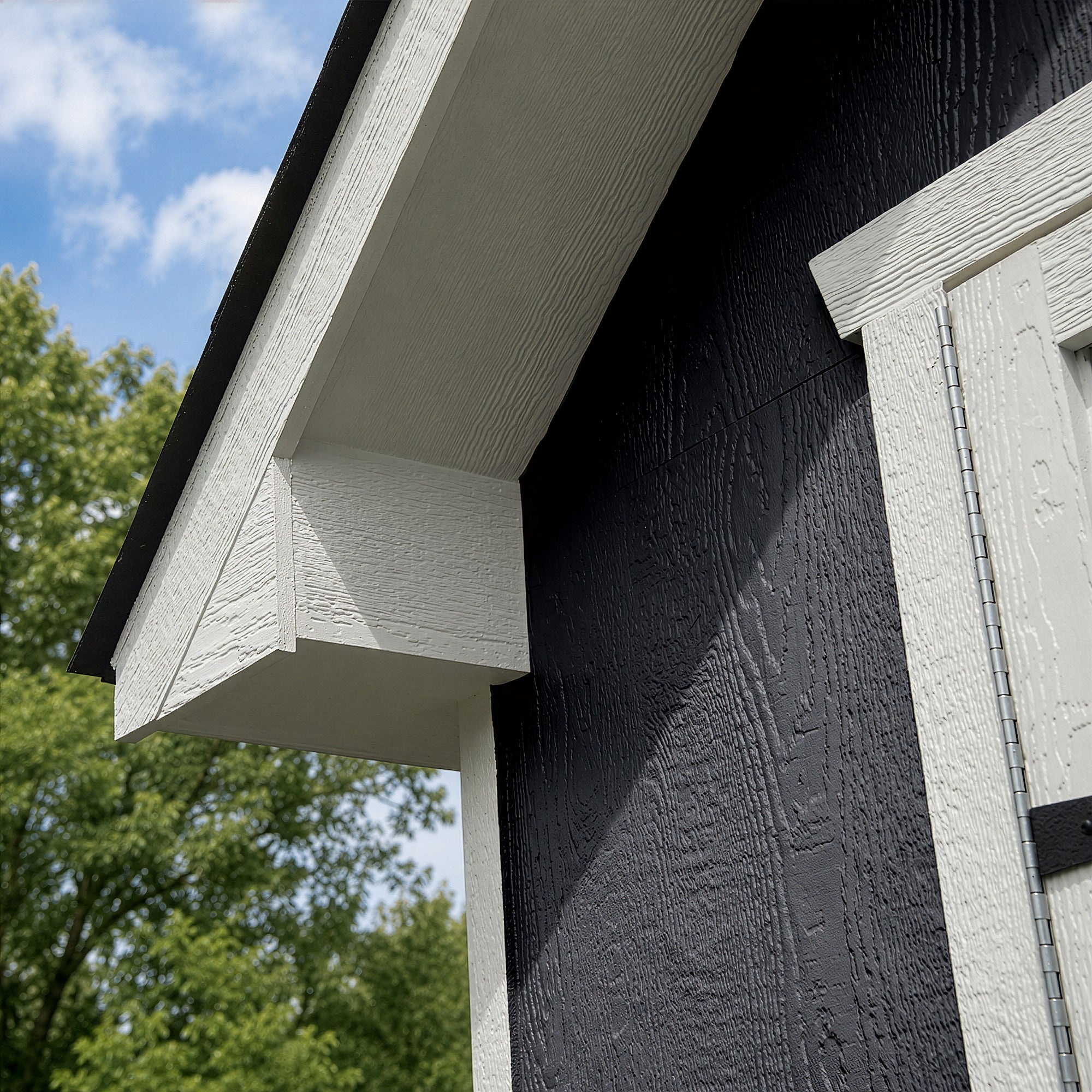

Overhang Length (Front): 7.5"
Overhang Length (Sides): 6"
Transom Windows: (1) 9" x 42"; (4) 9" x 19"
Workbench/Loft Dimensions: 20" x 113"Pegboard Material:

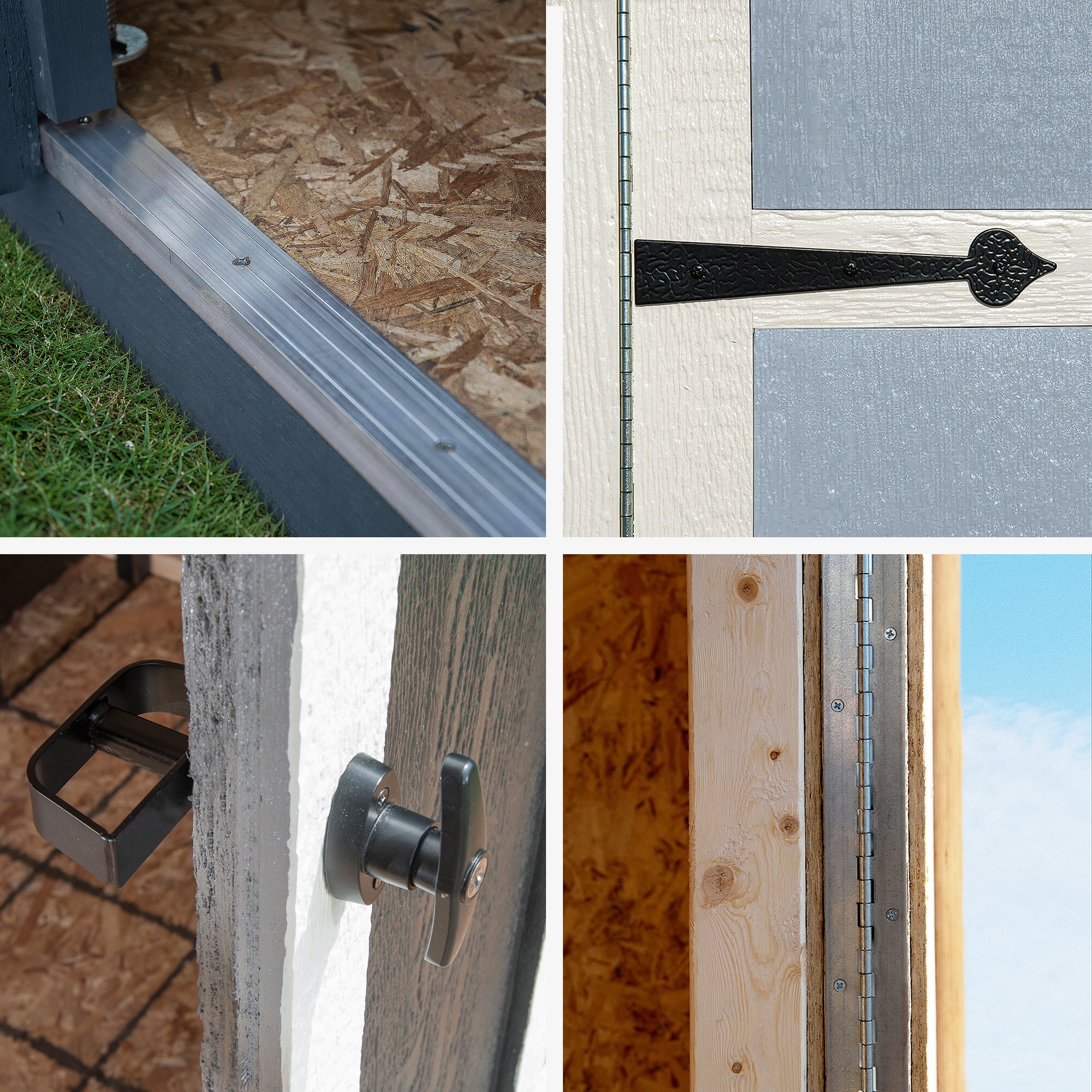

Aluminum Threshold: Included
Continuous Hinges: Included
Type of Lock Handle: T-handle
Shed Roof Style: Gable
Roof Pitch: 9.5/12
Maximum Roof Load: 30 lbs./sq. ft.
Maximum Wind Resistance: 115 mph
Warranty: 15-year limited material | 50-year limited on LP® SmartSide® siding
Shed Kit Dimensions: 48.5" x 96.5" x 21.75"
Country of Origin: USA
Tools Needed for Assembly: Hammer, tape measure, drill, screwdriver, ladder, chalk line, framing square and pencil
Items Not Included:
EXTERIOR LATEX PAINT/CAULK
Trim: 2 qt.
Doors: 1 qt.
Siding: 2 gal.
Caulk: 3 tubes
Roof:
Shingles: 8 bundles
Drip Edge: 60' optional
Felt Paper: 206 sq. ft.

Download 8x12 Northport Assembly Instructions
Download 10x12 Northport Assembly Instructions

Why Wood is Best

Built to Last

Wood has centuries of proven performance to meet demanding wind and snow loads. It won’t rust or dent like metal, or sag like resin.

Customizable

Paint with the colors of your choosing. Expand your space with cabinets, and pegboards (not included).

Natural Look

Nothing beats the warm, classic look of wood. Wood gives a robust feel that a resin or a metal shed cannot give.

More to Discover

Ready-to-Assemble Kit

Pre-cut wood components require no saw, just basic tools. How-to videos, illustrated instructions and US-based support help you along the way.

Delivered Curbside

Shed kits generally measure 4' x 8' and are fully protected in shrinkwrap. Components can easily be carried to the build site without moving fences or other objects.

Need help?

Helpful guides for your shed project

From site prep to assembly, our useful guides can help you plan, prepare, and build your shed with more confidence.
