Wimberly

Size: 12x10

12x10

Pre-cut, ready-to-build DIY shed kit

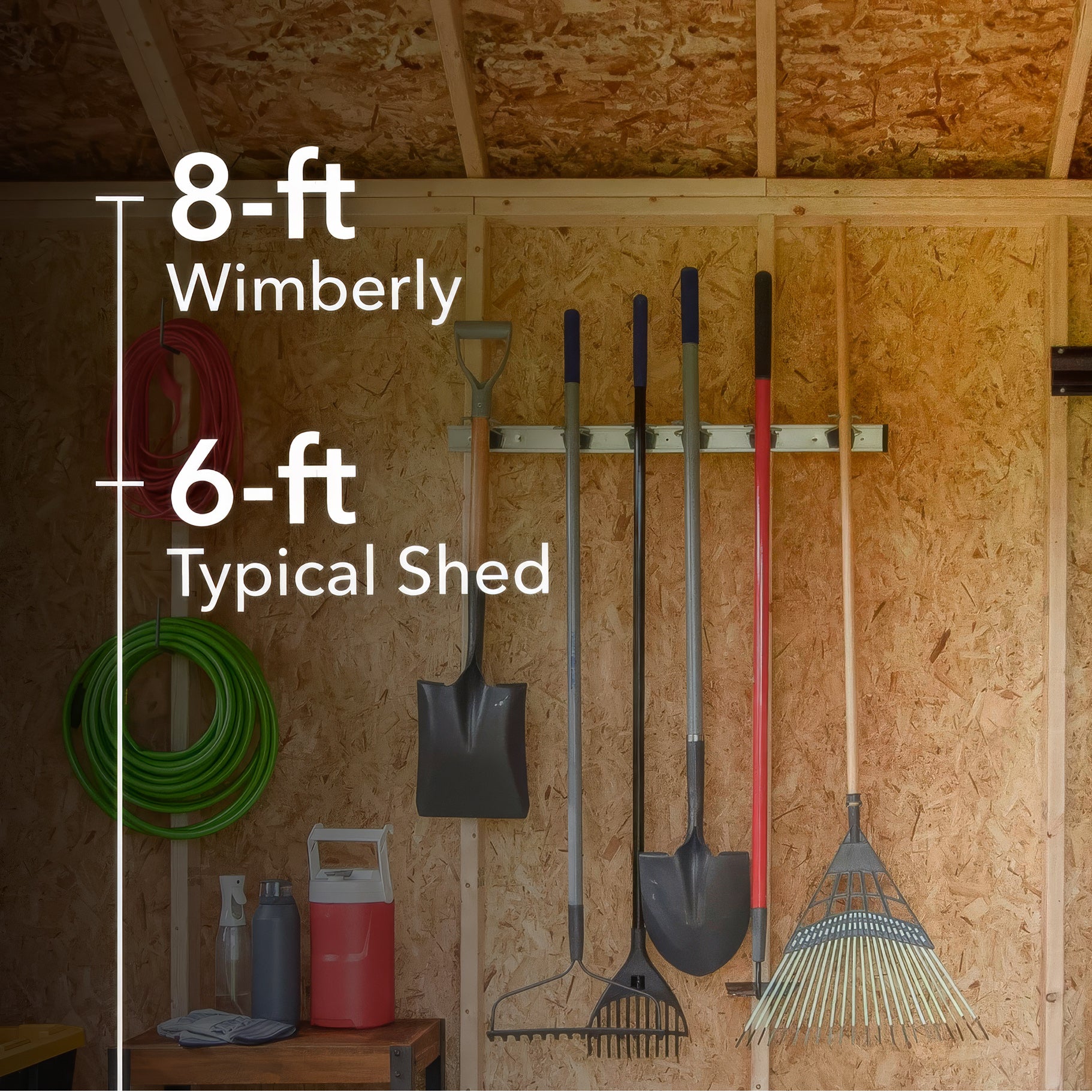

Extra-tall 8' side walls for more headroom and storage space

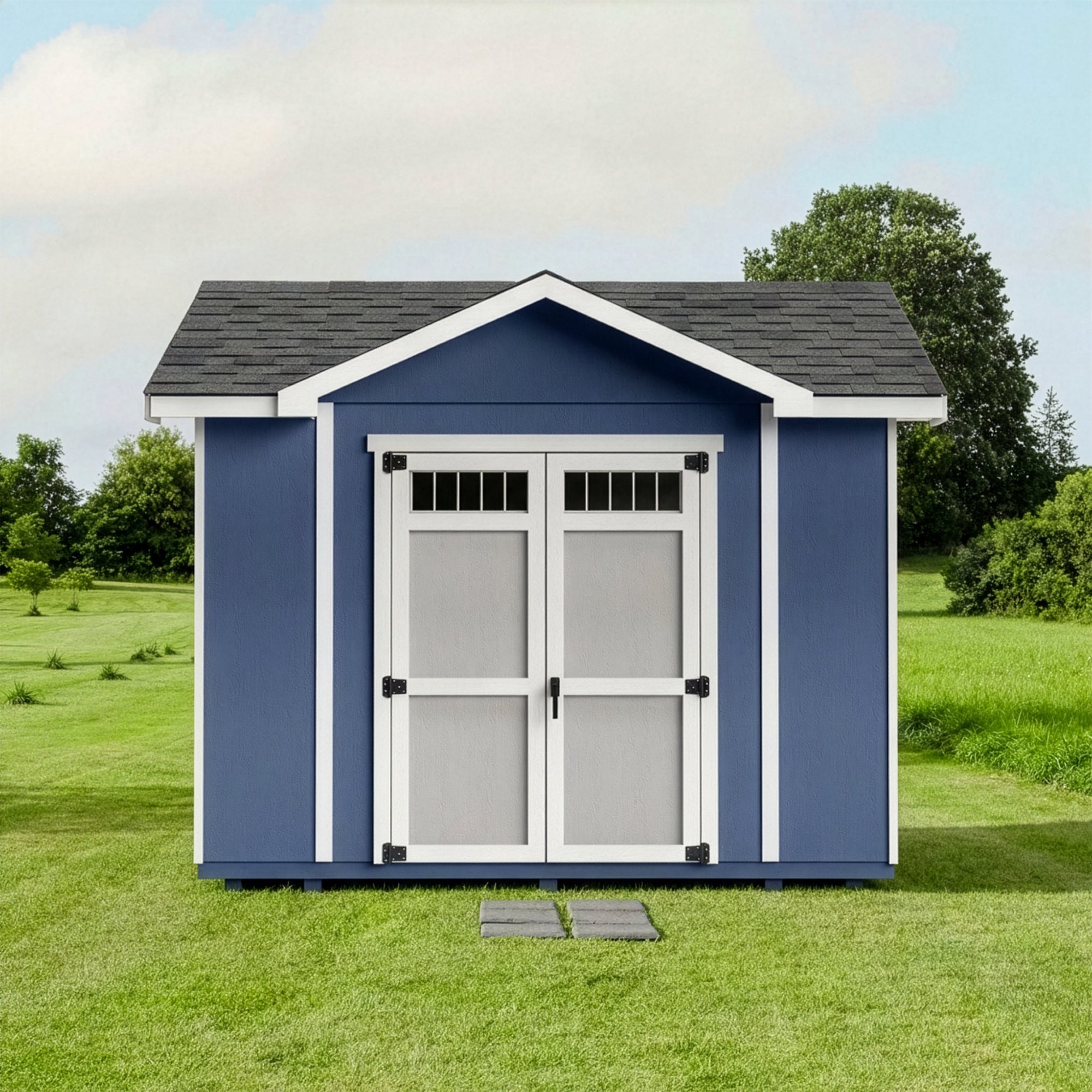

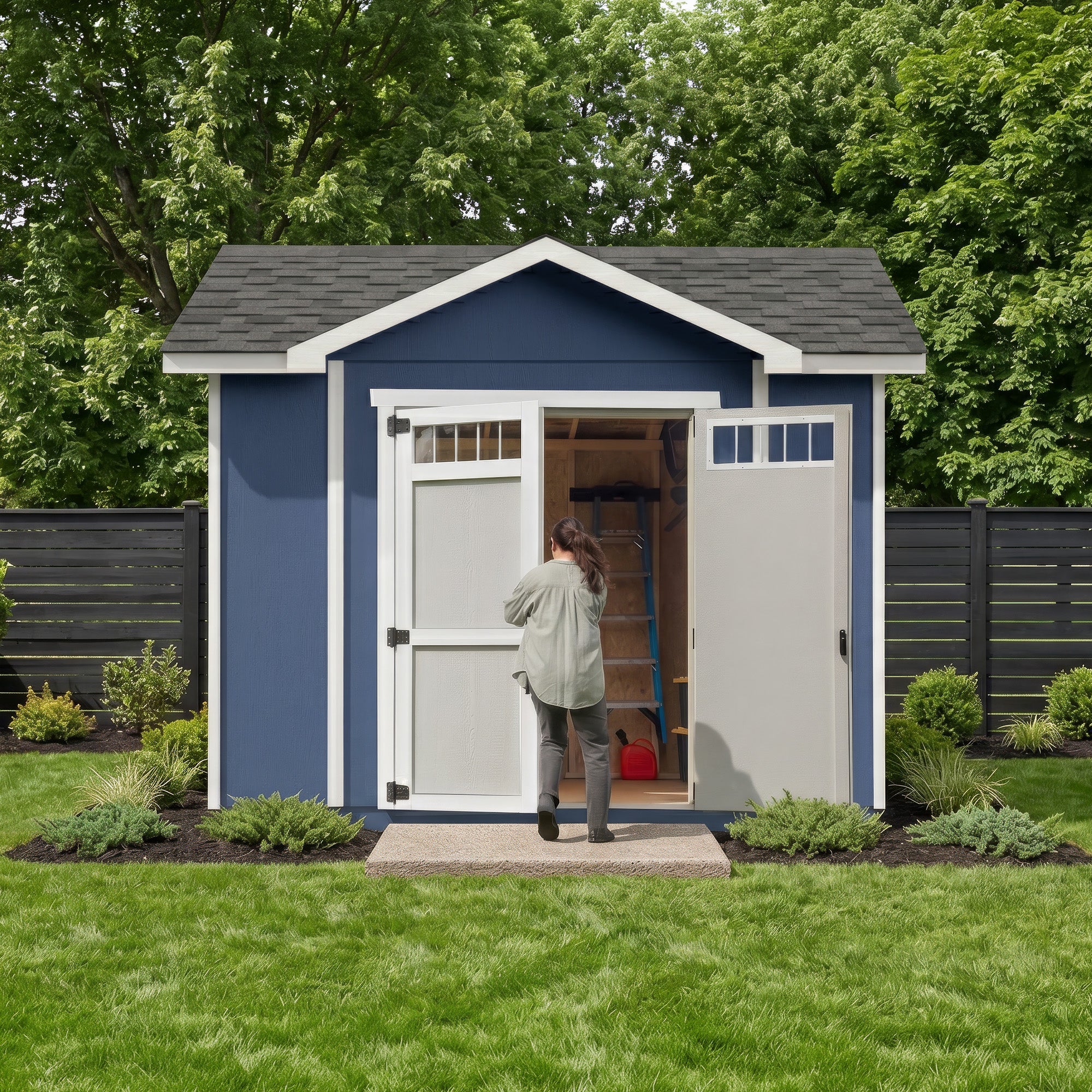

Extra-wide 64" x 84" double doors for easier access

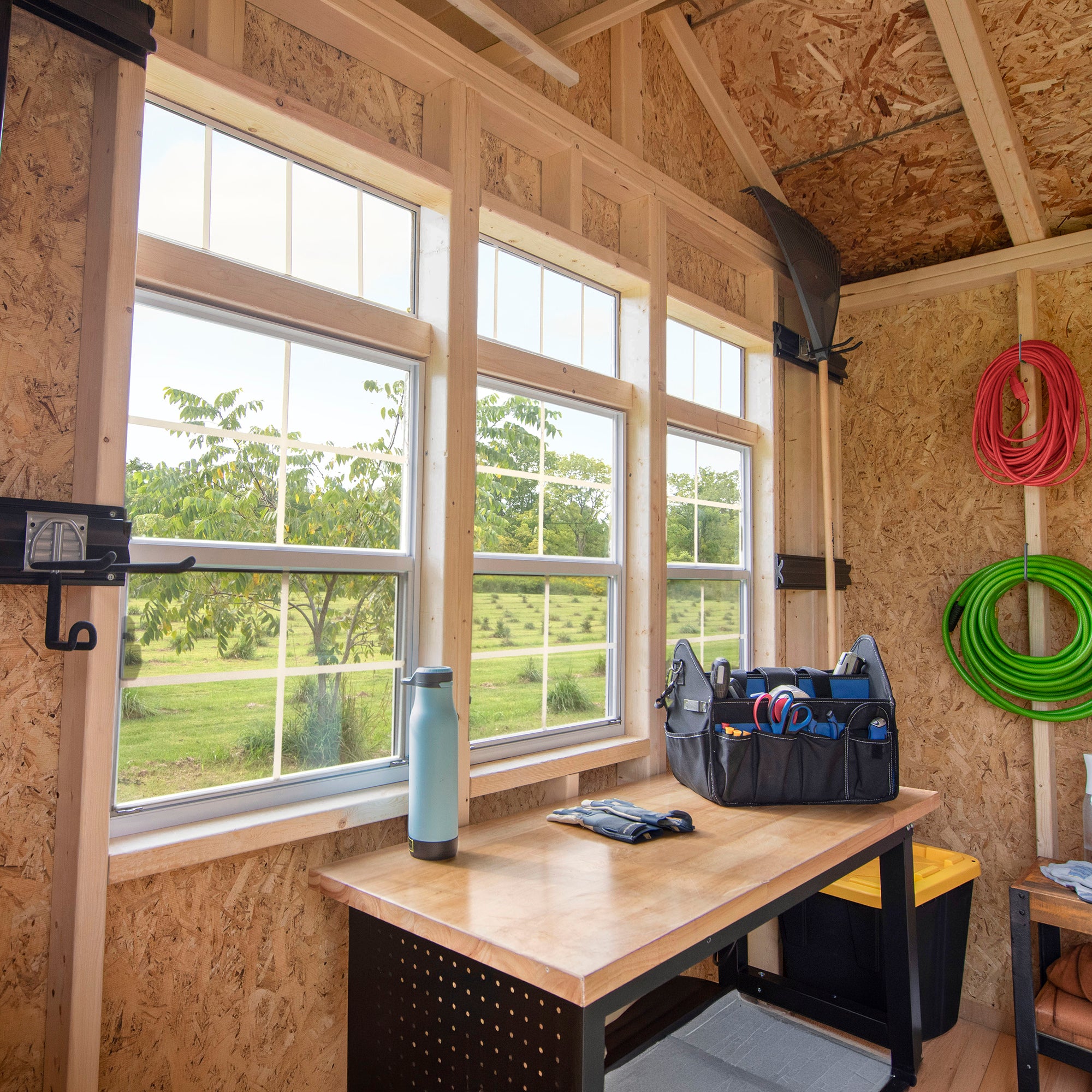

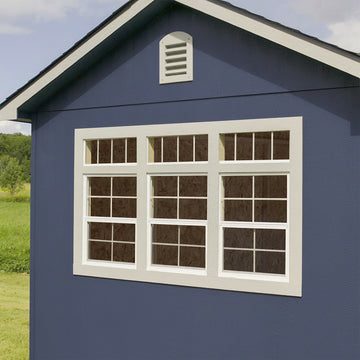

Three operable windows with screens for natural light and ventilation
Strong 2x4 framing built for wind and snow loads
LP® treated wood siding helps resist dents, decay, and termites

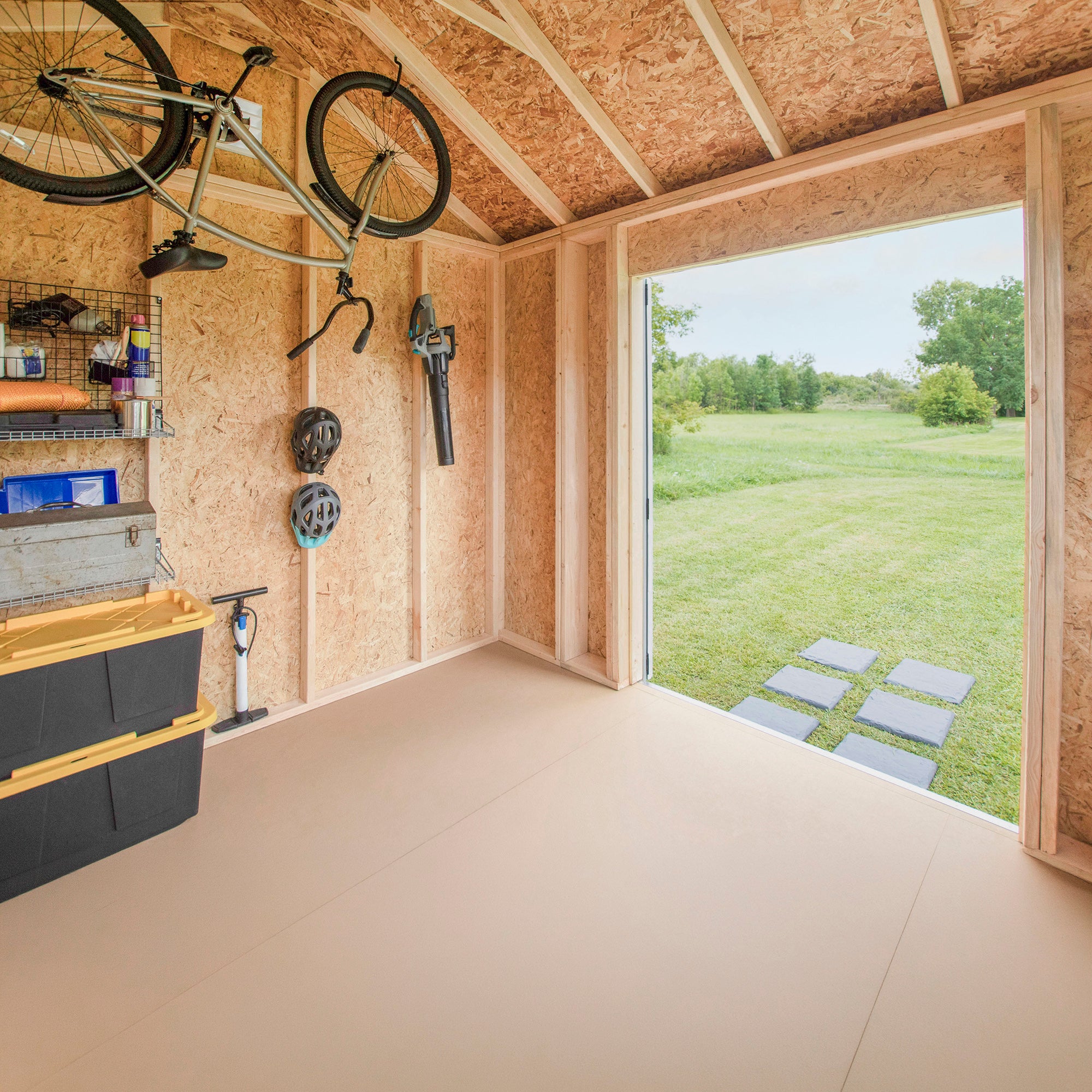

LP® ProStruct® floor system with 12" on-center joists included

Shop on Costco.com

Sku:
1028131

$0.00

Wimberly

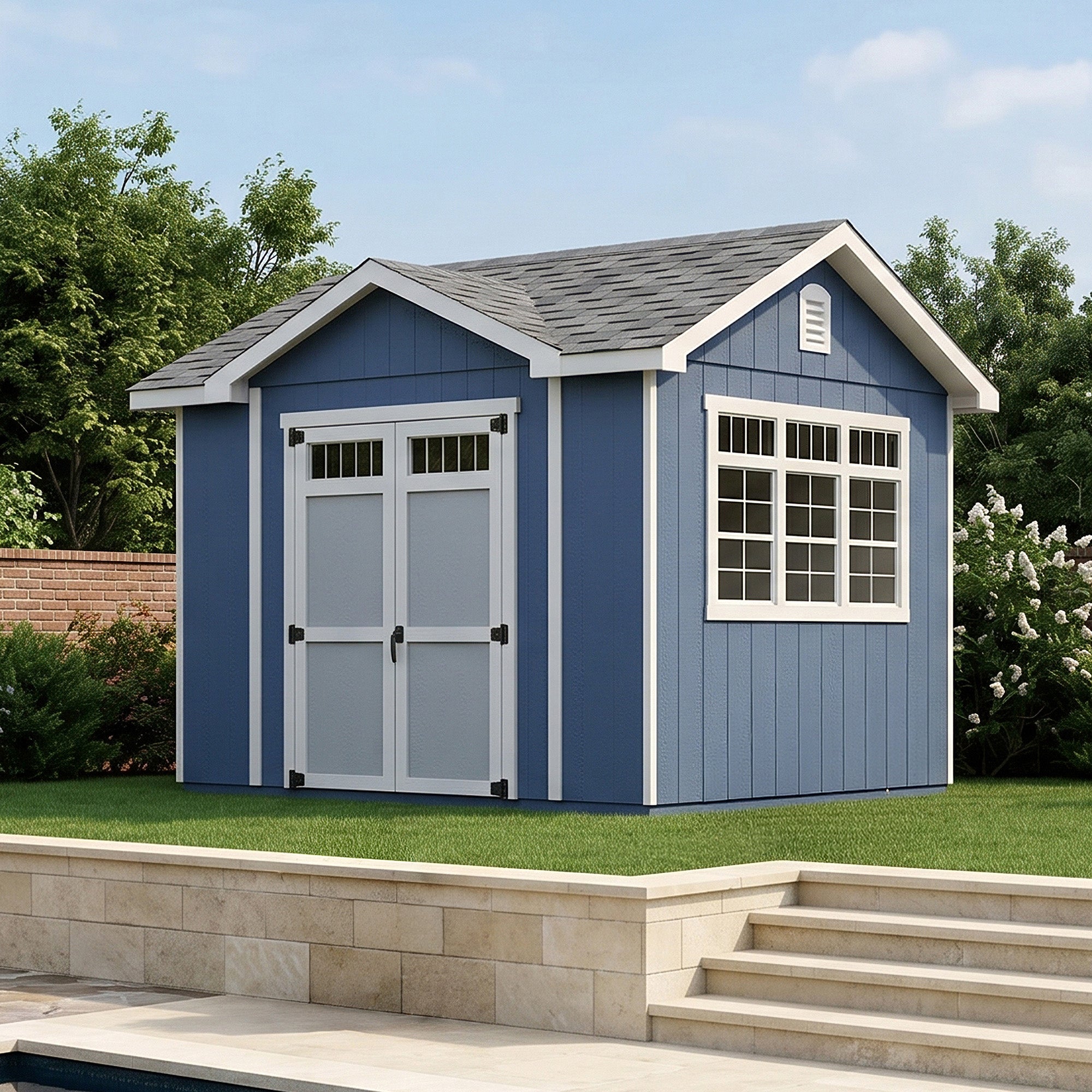

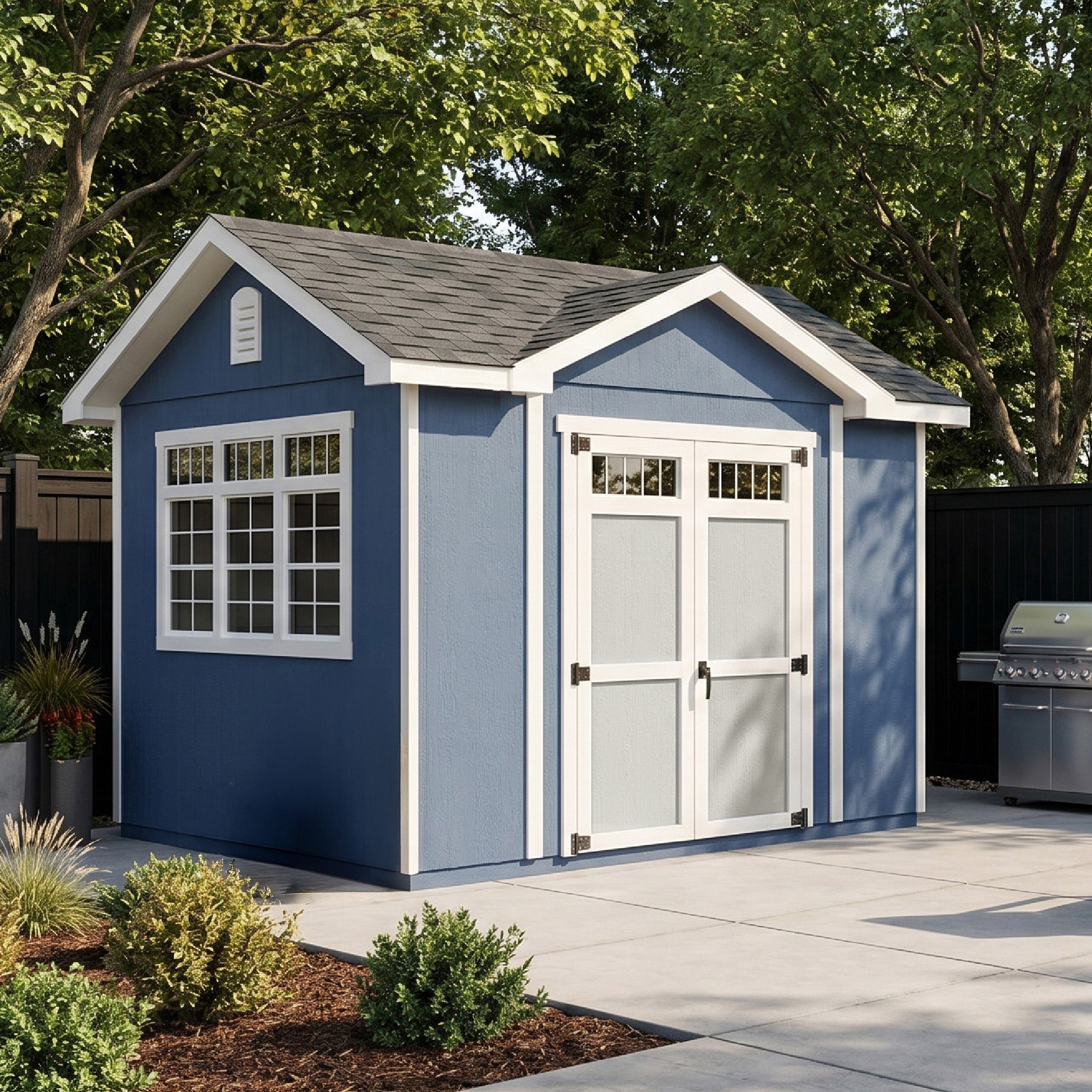

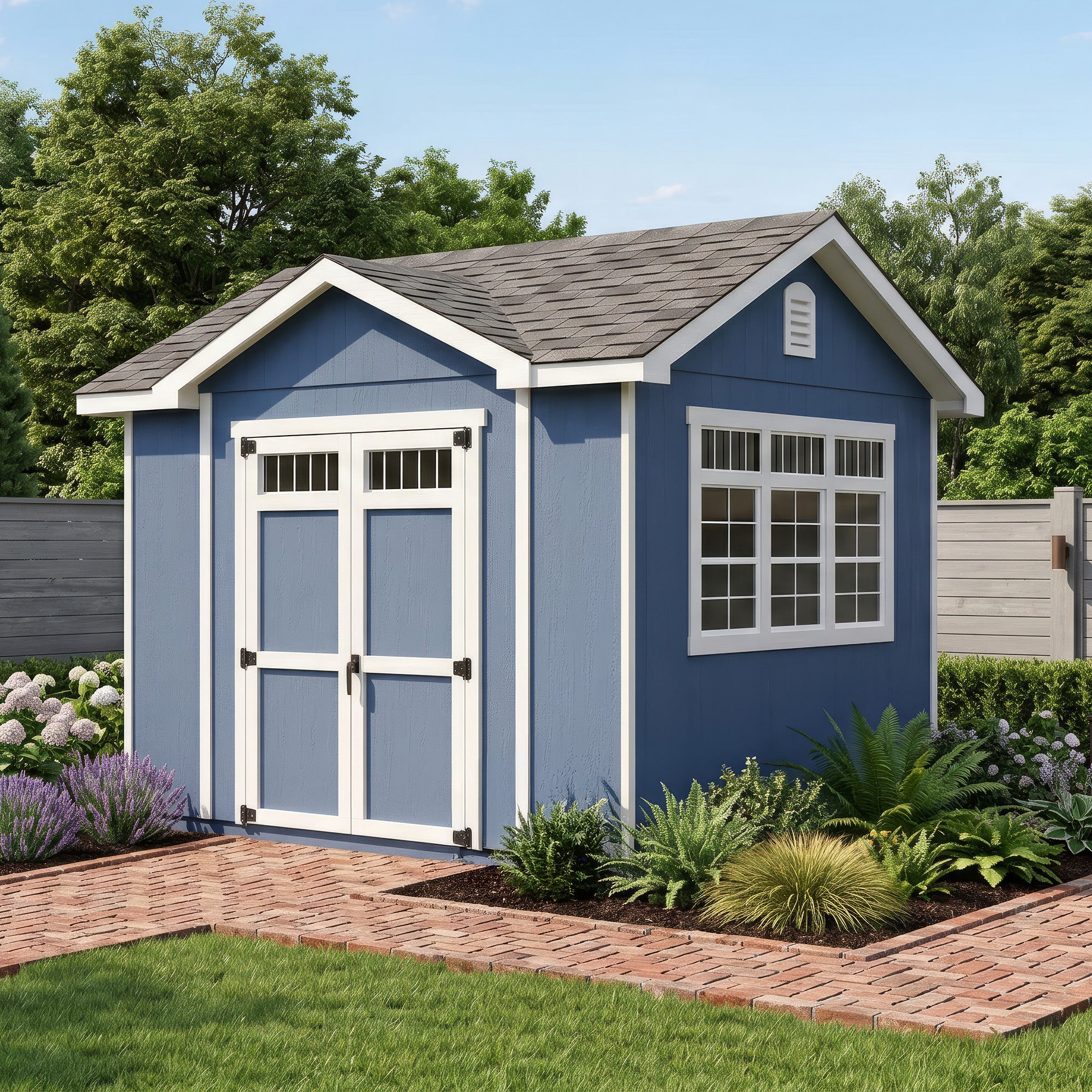

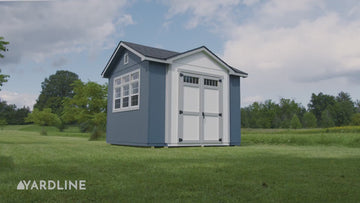

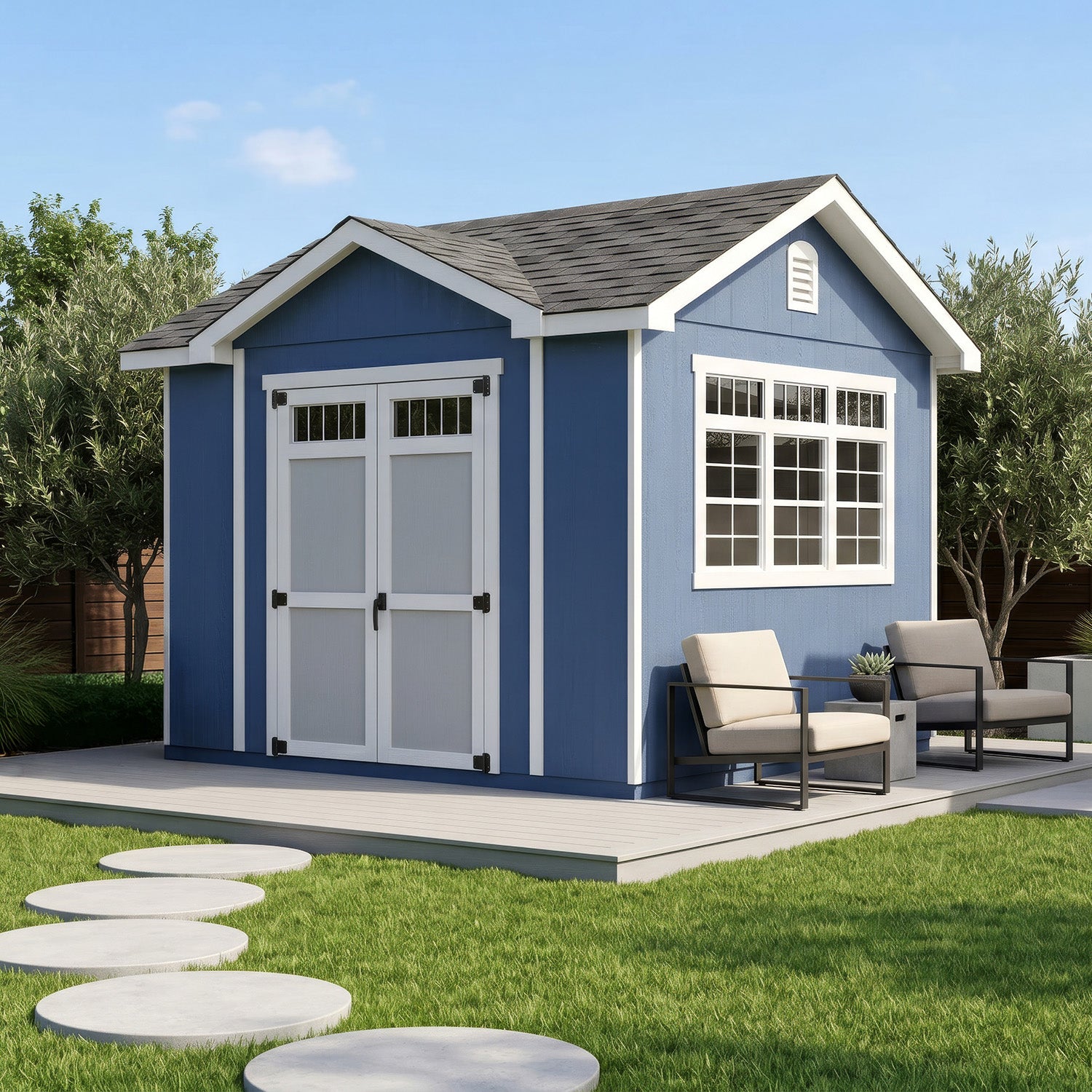

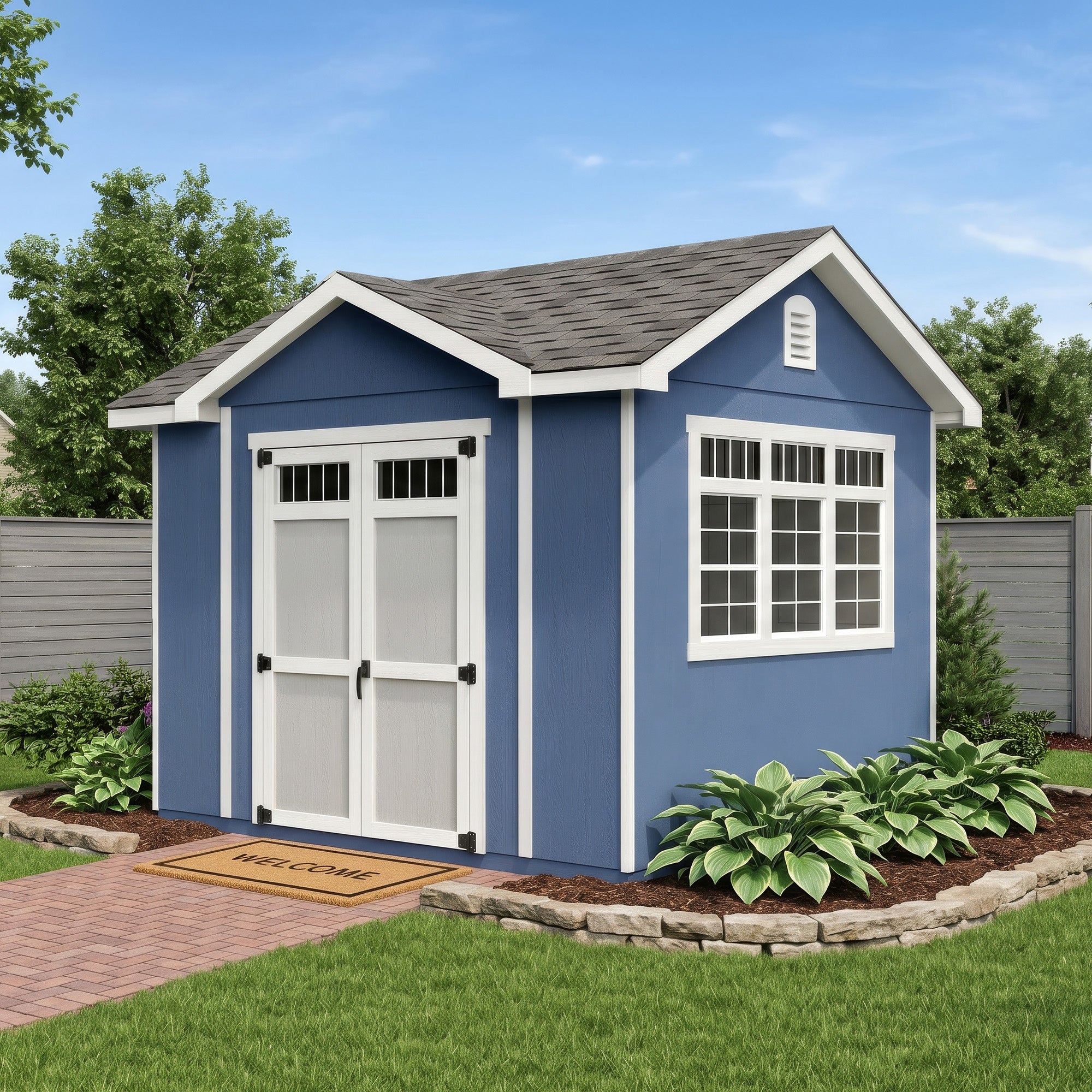

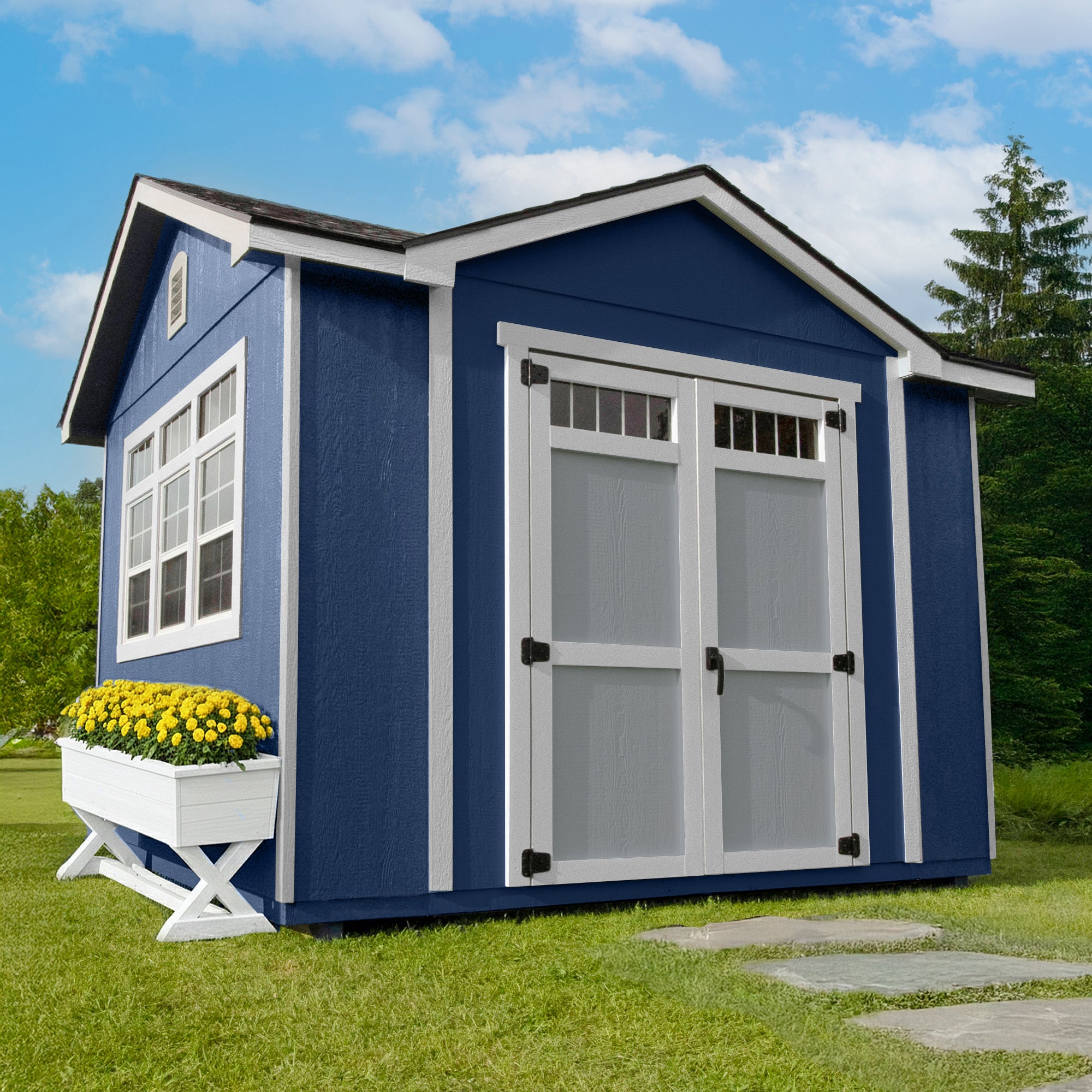

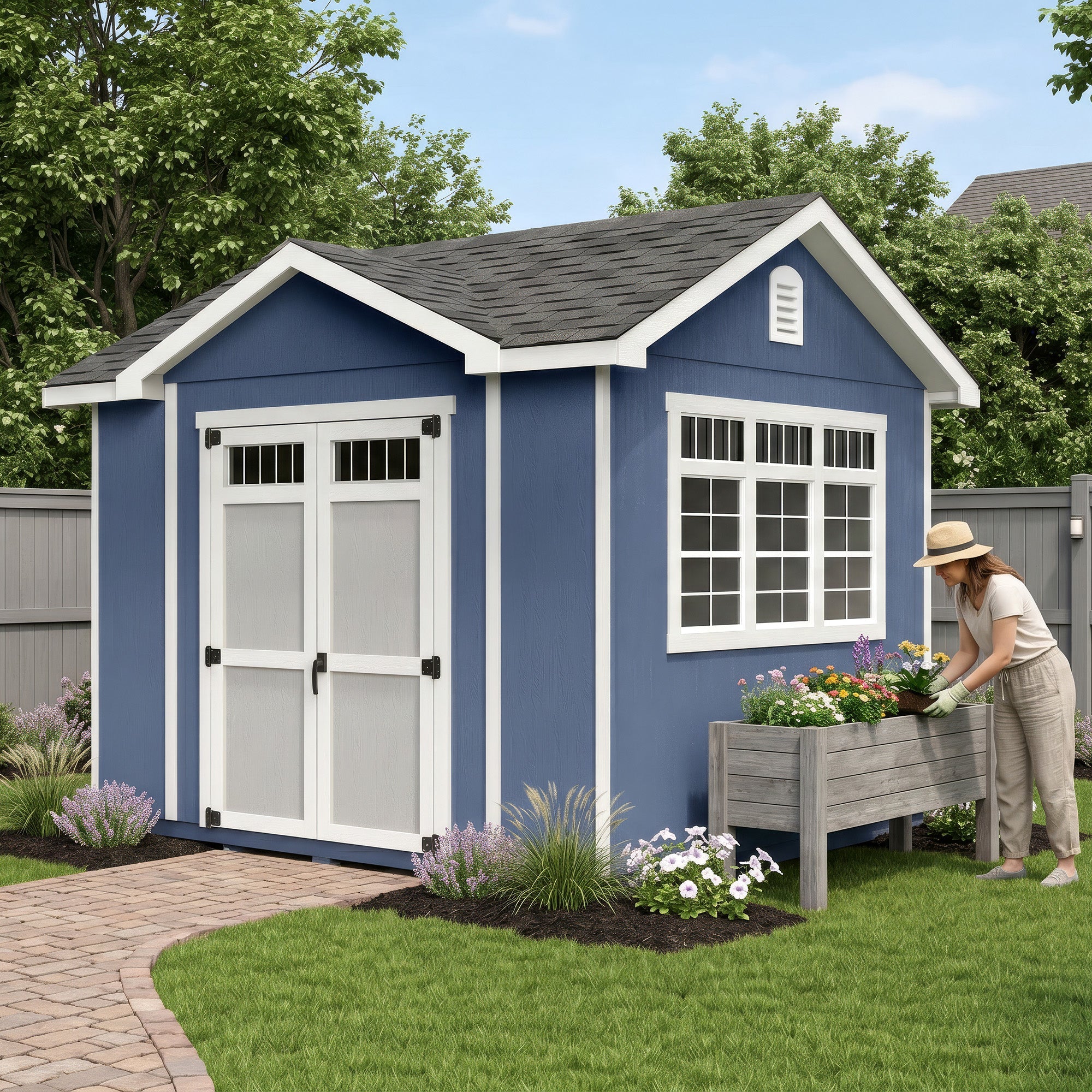

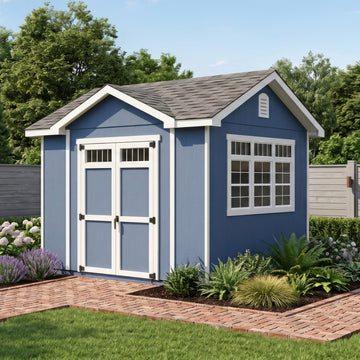

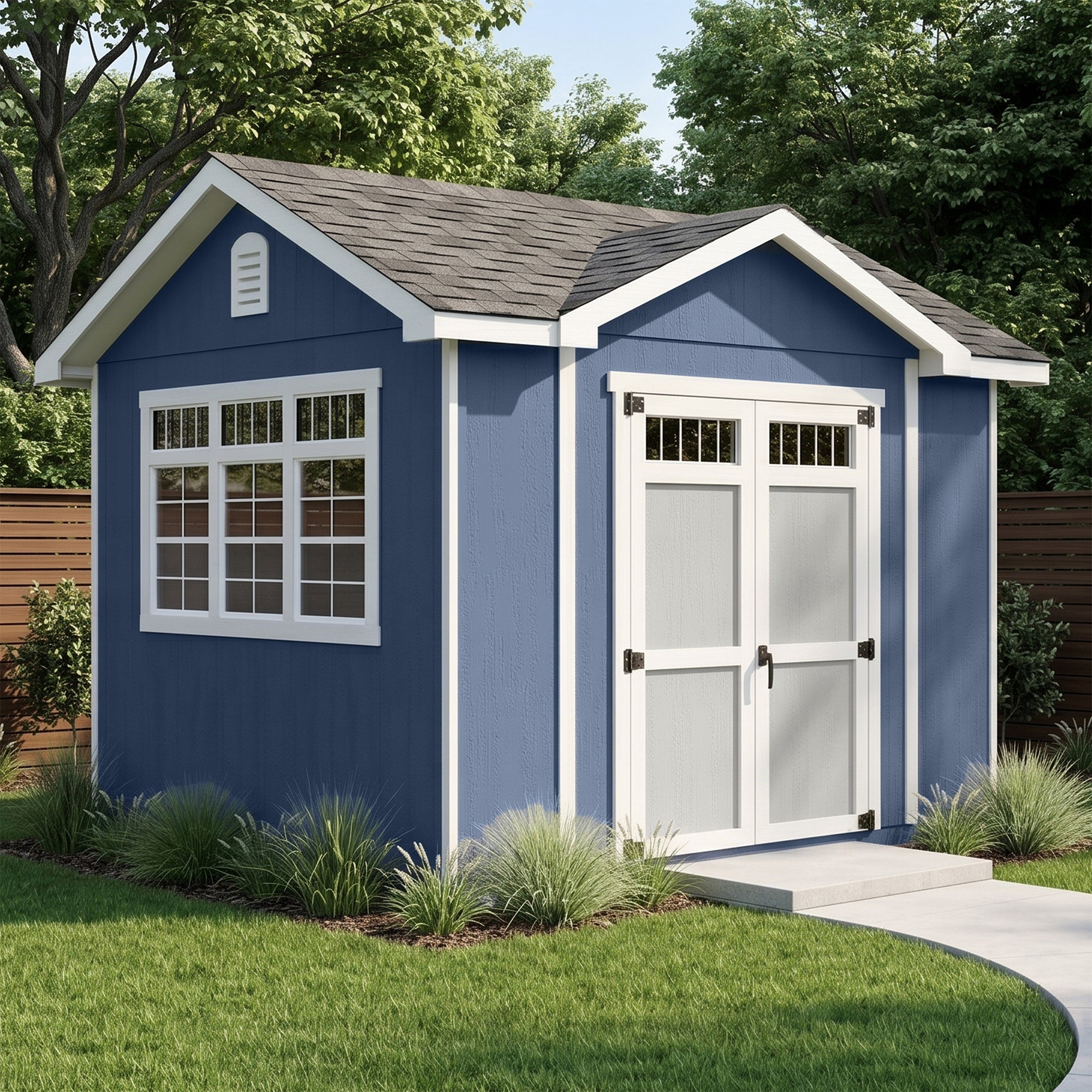

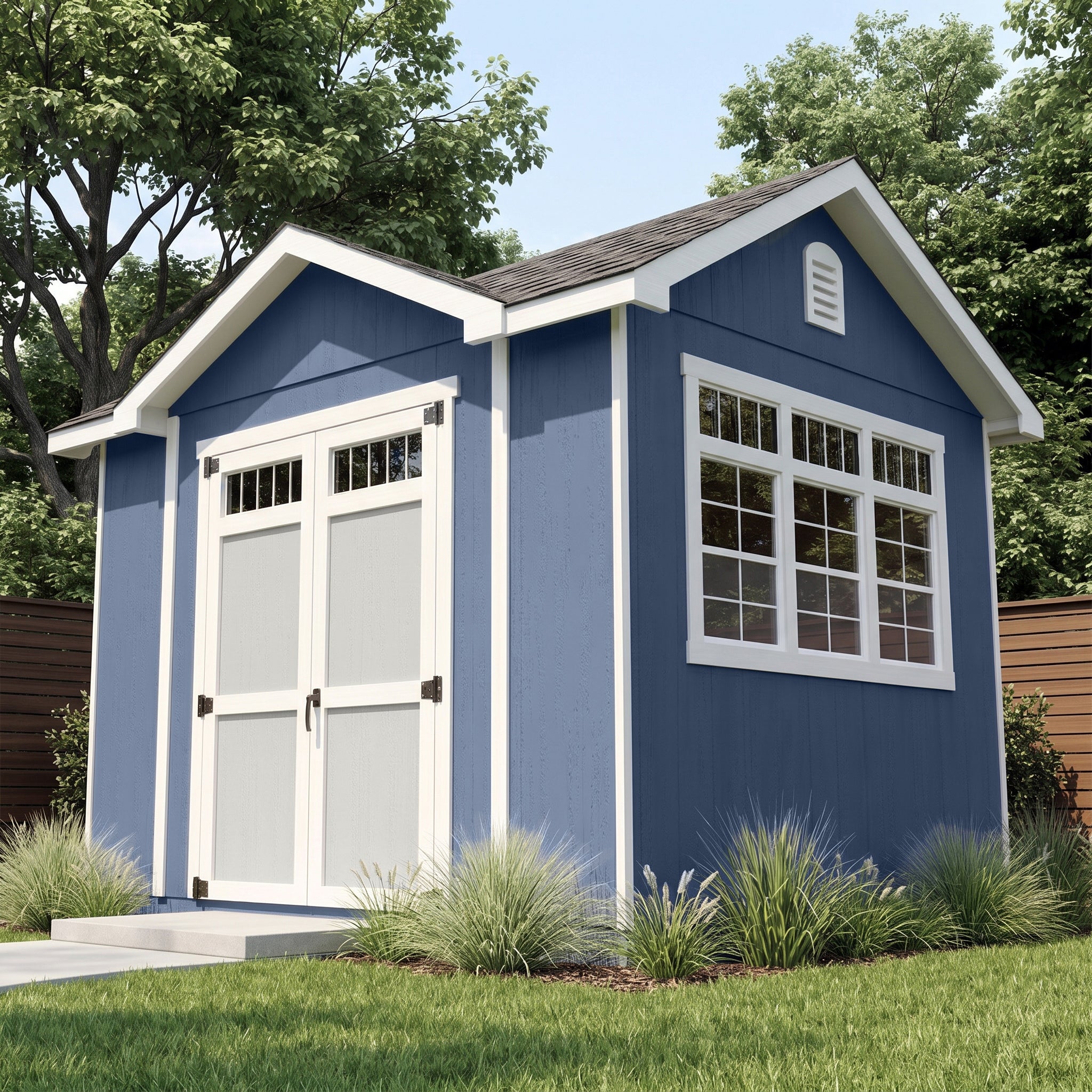

The Yardline Wimberly 12' x 10' wood shed brings standout style, serious storage, and DIY satisfaction to your backyard. Designed with extra-tall 8' side walls, wide double doors, and three operable windows with screens, it offers the space, light, and access you need for tools, equipment, seasonal décor, and weekend projects. With a reverse gable design, LP® treated siding, and an included LP® ProStruct® floor system, the Wimberly delivers a polished backyard look with the strength and function to handle everyday storage needs.

Dimensions (W x D x H): 12' x 10' x 11’ (nominal)
Concrete Slab Dimensions: 144" W x 123 3/4" D
Storage Capacity: 960 cu. ft.
Square Footage: 120 sq. ft.
Sidewall Height: 8'
Peak Height: 11'
Assembled Weight: 2,000 lbs.

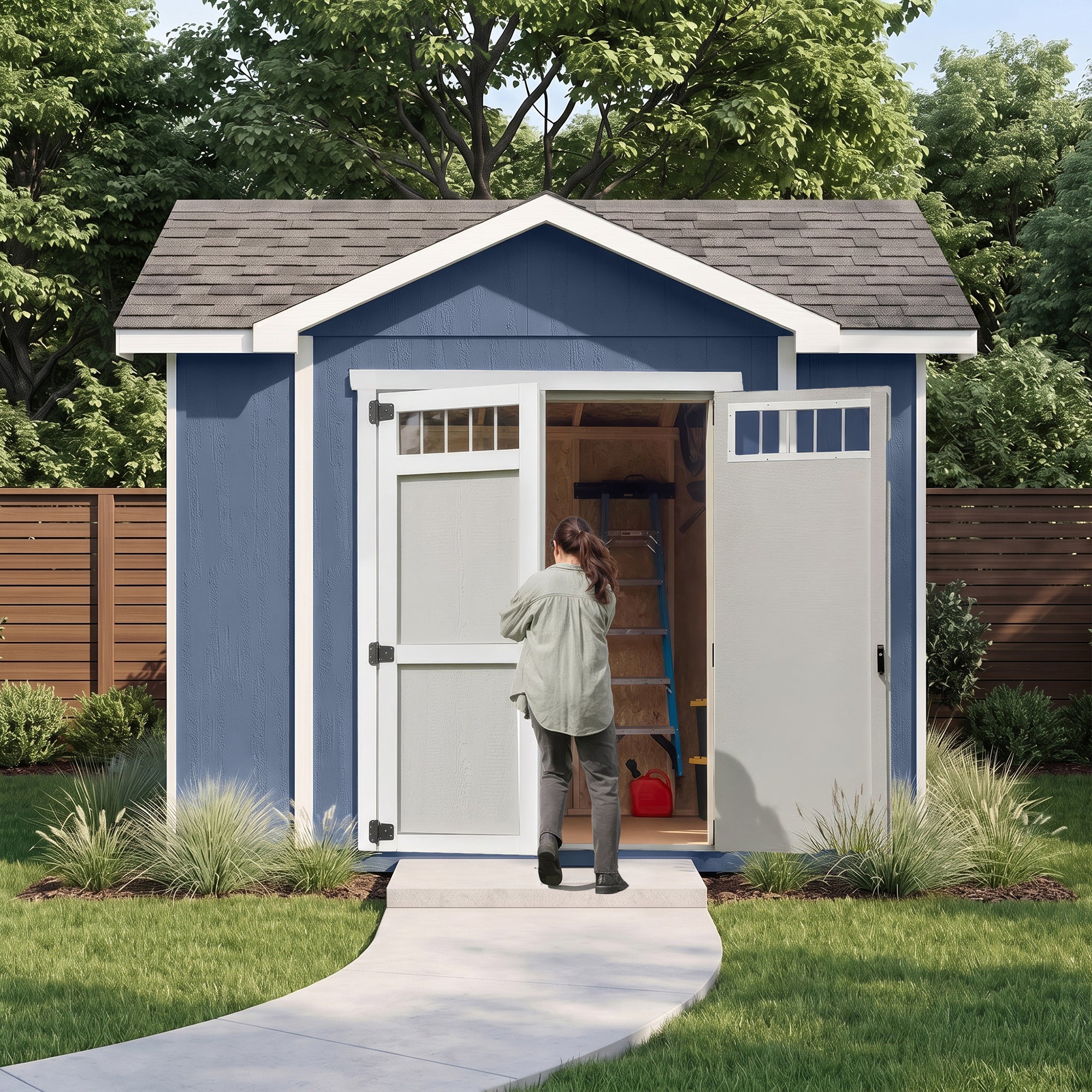

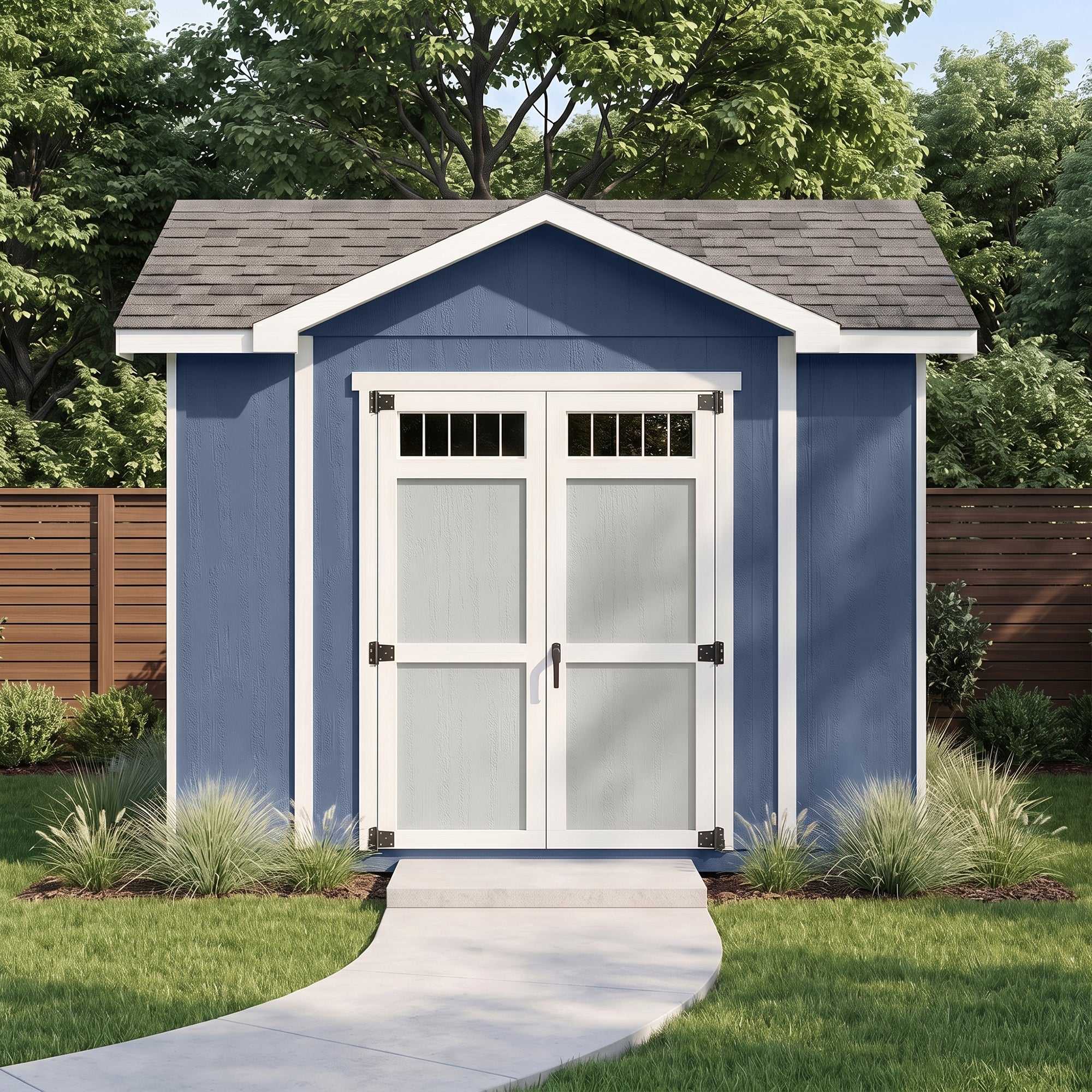

Door Opening (W x H): 64” x 84”

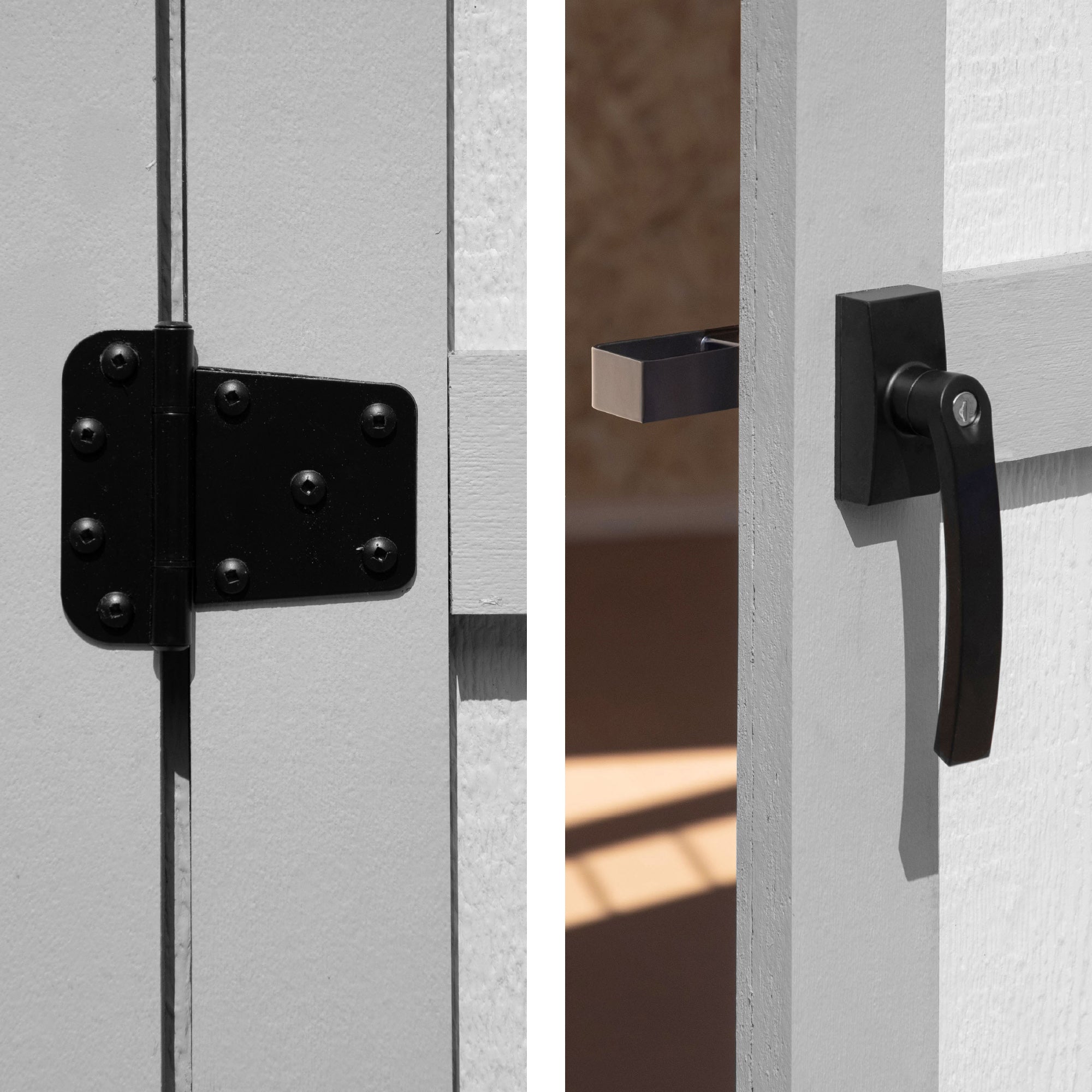

Door Handle: L-handle with Lock (keys included)
Vents: (2) Arched Gable Wall Vents

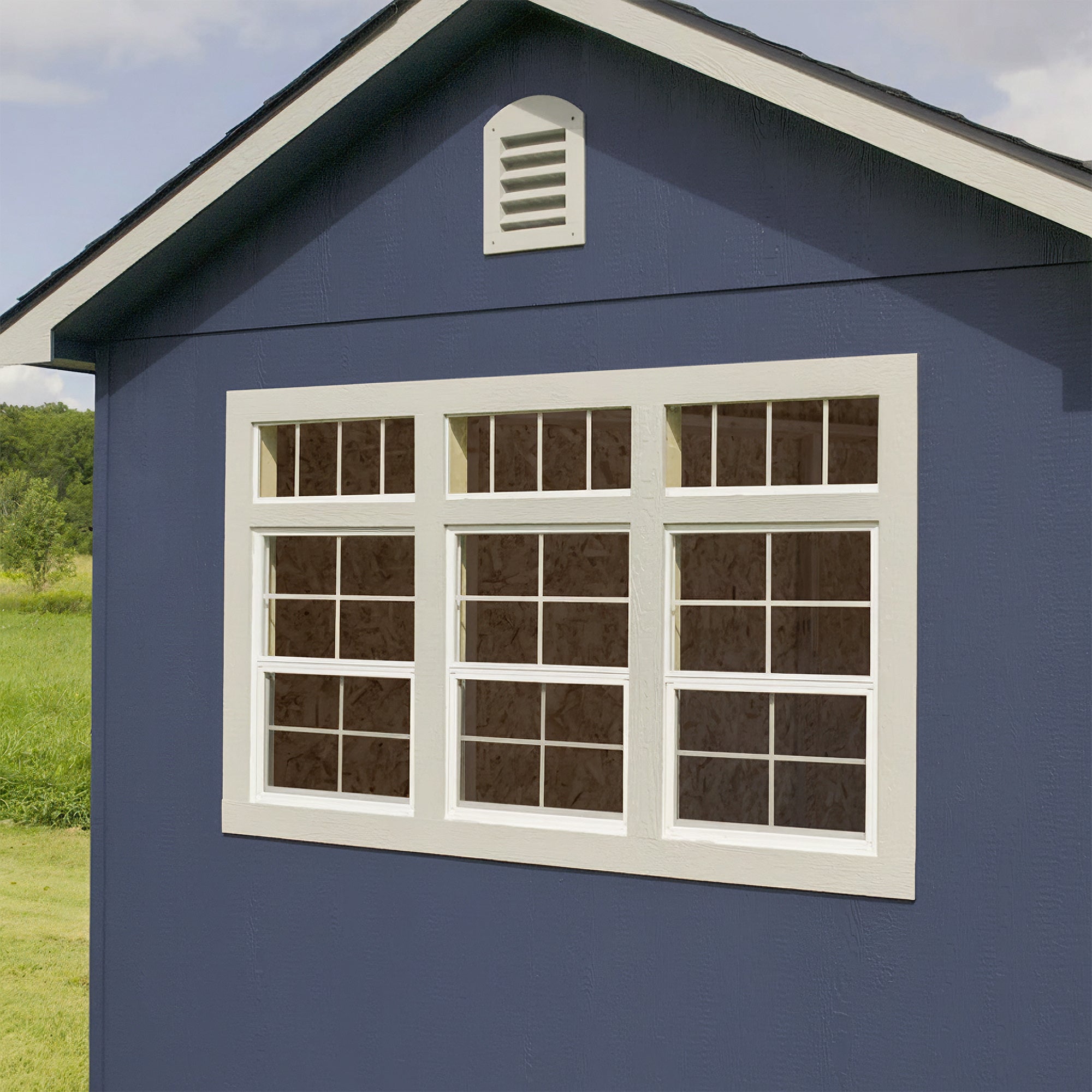

Windows: (5) Transom Windows: 9” x 25” ; (3) Large Operational Windows: 22-1/4” x 29-3/4”
Siding: LP® Smartside® treated siding
Number of Rafters: 9 sets
Wall Framing: 2" x 4"
Stud Spacing: 24” on-center
Floor: LP® ProStruct® treated floor with SmartGuard® and SmartFinish® technology
Floor Joist Spacing: 12" on-center
Floor Weight Capacity: 6,240 lbs. (52 lbs./ sq. ft.)
Material: Wood
Rafter Spacing: 24” on-center
Roof Style: Eave with Reverse Gable
Roof Pitch: 6/12
Max Roof Load: 3,600 lbs. (30 lbs. per sq. ft.)
Max Wind Resistance (mph): 115
Shingles (sold separately): 8 bundles
Paint (sold separately): Trim: 3 qt. | Doors: 2 qt. | Siding: 3 gal.
Caulk (sold separately): 3 tubes
Warranty: Limited 10-year warranty

Download Assembly Instructions

Why Wood is Best

Built to Last

Wood has centuries of proven performance to meet demanding wind and snow loads. It won’t rust or dent like metal, or sag like resin.

Customizable

Paint with the colors of your choosing. Expand your space with cabinets, and pegboards (not included).

Natural Look

Nothing beats the warm, classic look of wood. Wood gives a robust feel that a resin or a metal shed cannot give.

More to Discover

Ready-to-Assemble Kit

Pre-cut wood components require no saw, just basic tools. How-to videos, illustrated instructions and US-based support help you along the way.

Delivered Curbside

Shed kits generally measure 4' x 8' and are fully protected in shrinkwrap. Components can easily be carried to the build site without moving fences or other objects.
